PCB Board PhotoSensitive Epoxy FR-4 Double Side 250x150x1.6mm

The PCB Board PhotoSensitive Epoxy FR-4 is a double-sided copper-clad board, 250 × 150 mm and 1.6 mm thick, with a light-sensitive photoresist coating already applied to both copper sides. You expose it to UV light through a printed film of your circuit, develop it, and etch away the unwanted copper to make a clean, professional-looking printed circuit board at home, in the lab or in the classroom.

PCB Board PhotoSensitive Epoxy FR-4 Specifications

• Base material: FR-4 glass-epoxy
• Copper: both sides (double-sided)
• Coating: photosensitive resist on both copper sides
• Size: 250 × 150 mm
• Thickness: 1.6 mm, the standard PCB thickness
• Process: UV exposure, developing and etching

PCB Board PhotoSensitive Epoxy FR-4 Applications

• Making single- and double-sided PCBs for prototypes
• Arduino shields and custom circuit boards
• University and school PCB-making labs
• Small production runs and replacement boards for repairs

What's in the Box

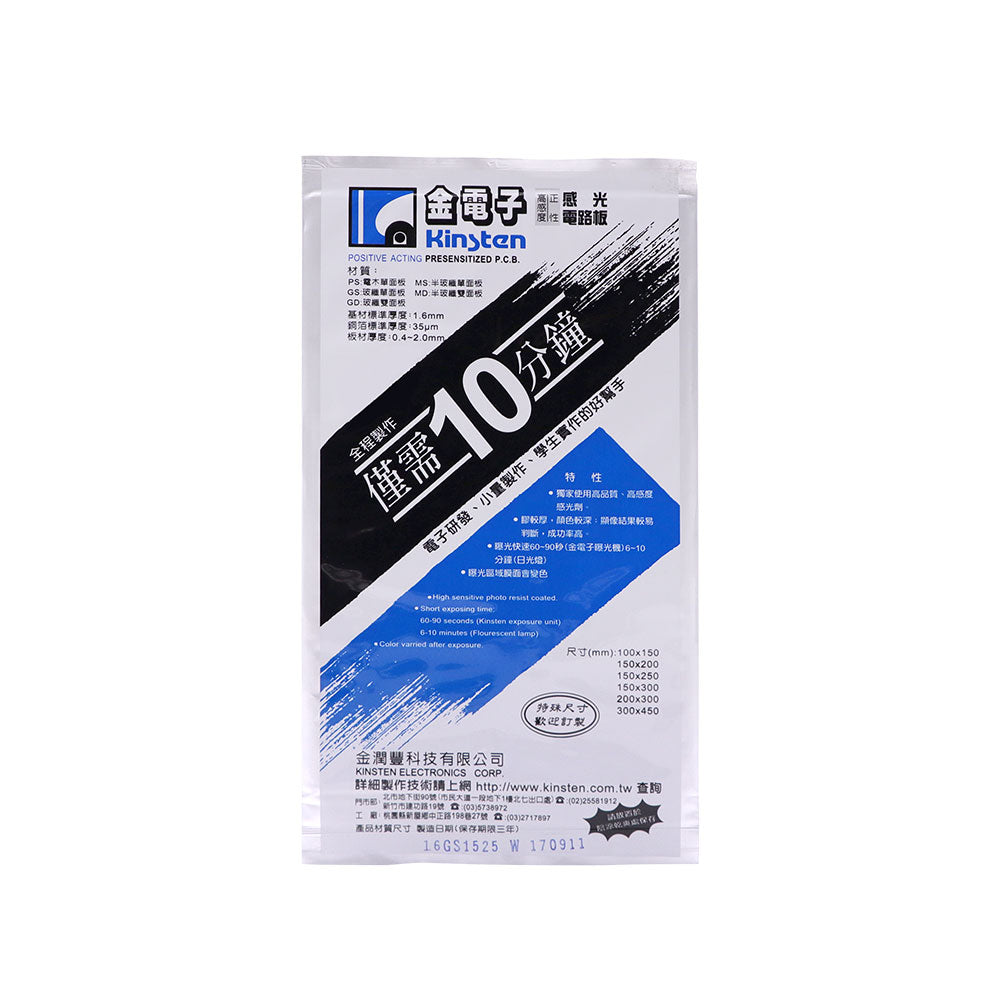

• 1 × photosensitive double-sided FR-4 PCB board, 250 × 150 × 1.6 mm

Tip: Keep the board in its packaging away from daylight and fluorescent light until you are ready to expose it, and cut it to size under dim light. For a double-sided board, line up the top and bottom films carefully, for example by taping them together along one edge and sliding the board in between.
