PCB Single Side 10x15cm

The PCB Single Side 10x15cm is a blank printed circuit board with copper on one side, measuring 10 × 15 cm. Instead of building a circuit on perfboard, you transfer your own track layout onto the copper and remove the unwanted copper by etching or CNC milling, which gives a neat, permanent board for a finished project.

PCB Single Side 10x15cm Specifications

• Type: single-sided copper-clad board (blank PCB)
• Copper: one side only
• Size: 10 × 15 cm (100 × 150 mm)
• Holes: none, you drill the holes your design needs

PCB Single Side 10x15cm Applications

• Making custom single-layer PCBs for Arduino shields and modules
• CNC isolation milling of prototype boards
• Etching small runs of boards for school and university projects
• Power supply, amplifier and LED driver boards
• Cutting into smaller pieces for several small circuits

What's in the Box

• 1 × single-sided PCB, 10 × 15 cm

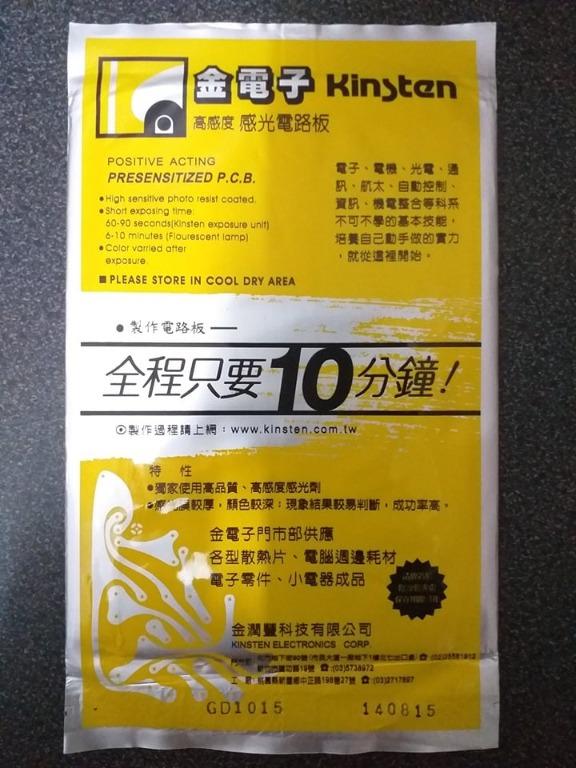

Tip: For a plain copper board, clean the copper with a fine abrasive and alcohol before transferring your design, and avoid touching it with bare fingers. If the board has a photoresist coating under a protective film, do not scrub it: expose it to UV light through your artwork and develop it before etching.
