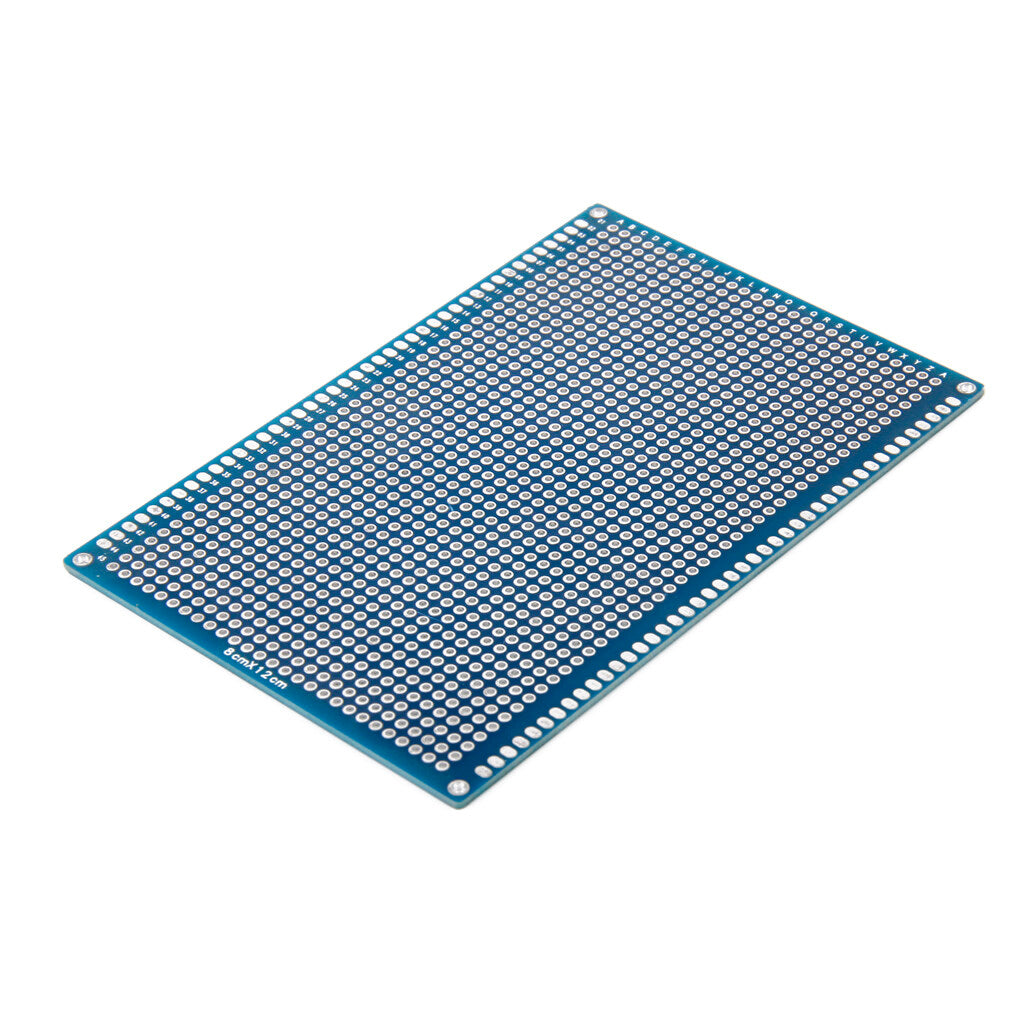

Perforated PCB Single Side 13x25cm

The Perforated PCB Single Side 13x25cm is a large prototype board with a grid of holes and copper pads on one side, used to solder circuits permanently once they work on a breadboard. Its 2.54 mm hole pitch matches DIP ICs, pin headers and most through-hole components, and the 13 × 25 cm size leaves room for bigger projects with several modules, power circuits and connectors on one board. It can also be cut into smaller pieces.

Perforated PCB Single Side 13x25cm Specifications

• Size: 13 × 25 cm (130 × 250 mm)
• Type: perforated prototype board (perfboard)
• Copper: solder pads on one side only
• Hole pitch: 2.54 mm (0.1 in)
• Fits: through-hole resistors, capacitors, DIP ICs, headers and modules

Perforated PCB Single Side 13x25cm Applications

• Moving a tested breadboard circuit to a permanent soldered board
• Larger Arduino, ESP32 and Raspberry Pi control boards
• Power supply, relay and LED driver boards
• Soldering practice for students and beginners
• University and school electronics projects

What's in the Box

• 1 × single-sided perforated PCB, 13 × 25 cm

Tip: Place the components on the side without copper and solder them on the pad side. Plan the layout on paper first, then join pads with solder bridges or short pieces of wire. To cut the board to size, score along a row of holes on both sides and snap it.
