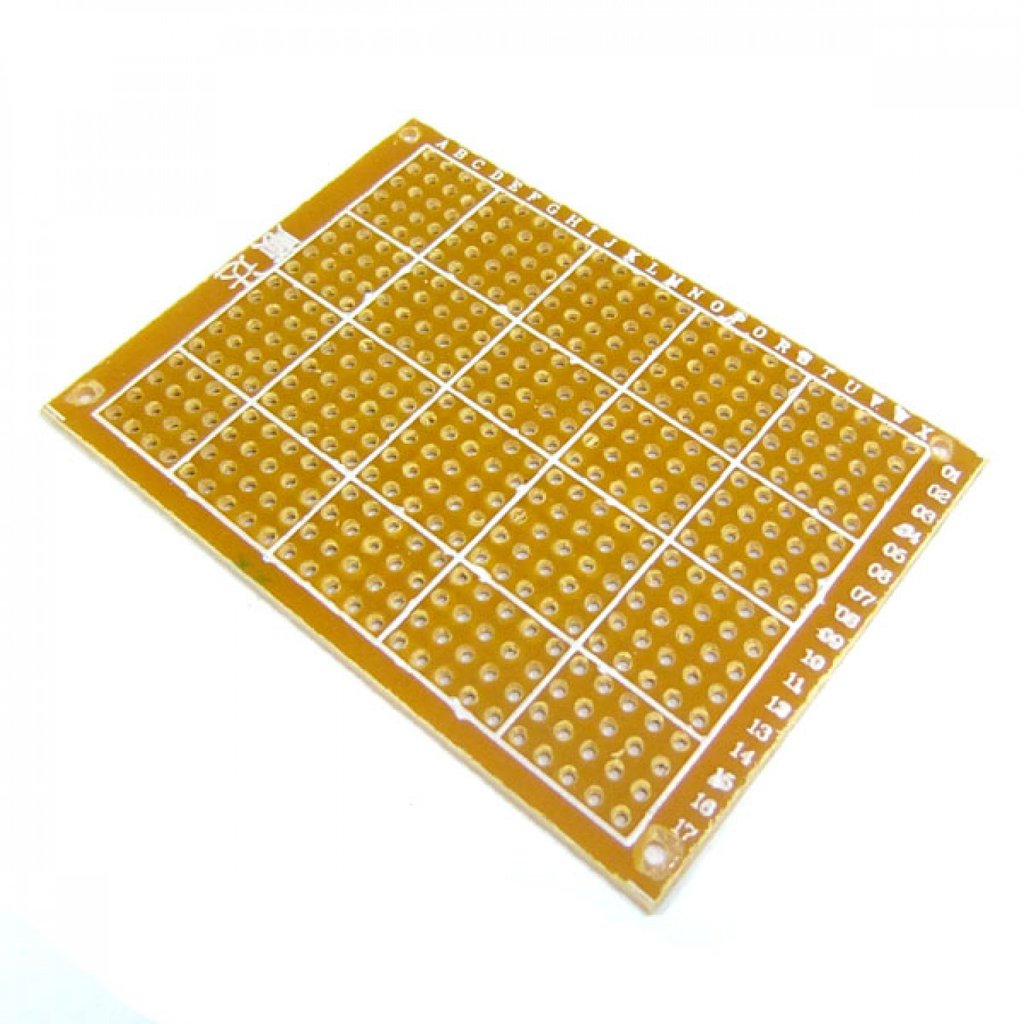

Perforated PCB Single Side 7x5cm

The Perforated PCB Single Side 7x5cm is a single-sided prototyping board with a regular grid of holes and copper pads on one side. It lets you move a circuit from the breadboard to a permanent soldered build, and its 7 × 5 cm size suits small projects, sensor boards and Arduino add-ons.

Perforated PCB Single Side 7x5cm Specifications

• Size: 7 × 5 cm
• Type: perforated prototype board (perfboard)
• Copper: solder pads on one side only
• Hole pitch: 2.54 mm (0.1 in), the standard grid for DIP ICs and pin headers
• Connections: made with wire links, component leads or solder bridges

Perforated PCB Single Side 7x5cm Applications

• Soldering permanent versions of breadboard circuits
• Small LED, sensor and power supply boards
• Mounting Arduino Nano or ESP32 modules on headers
• Practising through-hole soldering
• Student and hobby electronics projects

What's in the Box

• 1 × 7 × 5 cm single-sided perforated PCB

Tip: Insert the components from the plain side and solder them on the copper side. If the pads look dull, clean them first with a little isopropyl alcohol or very fine sandpaper so the solder flows and sticks easily.
