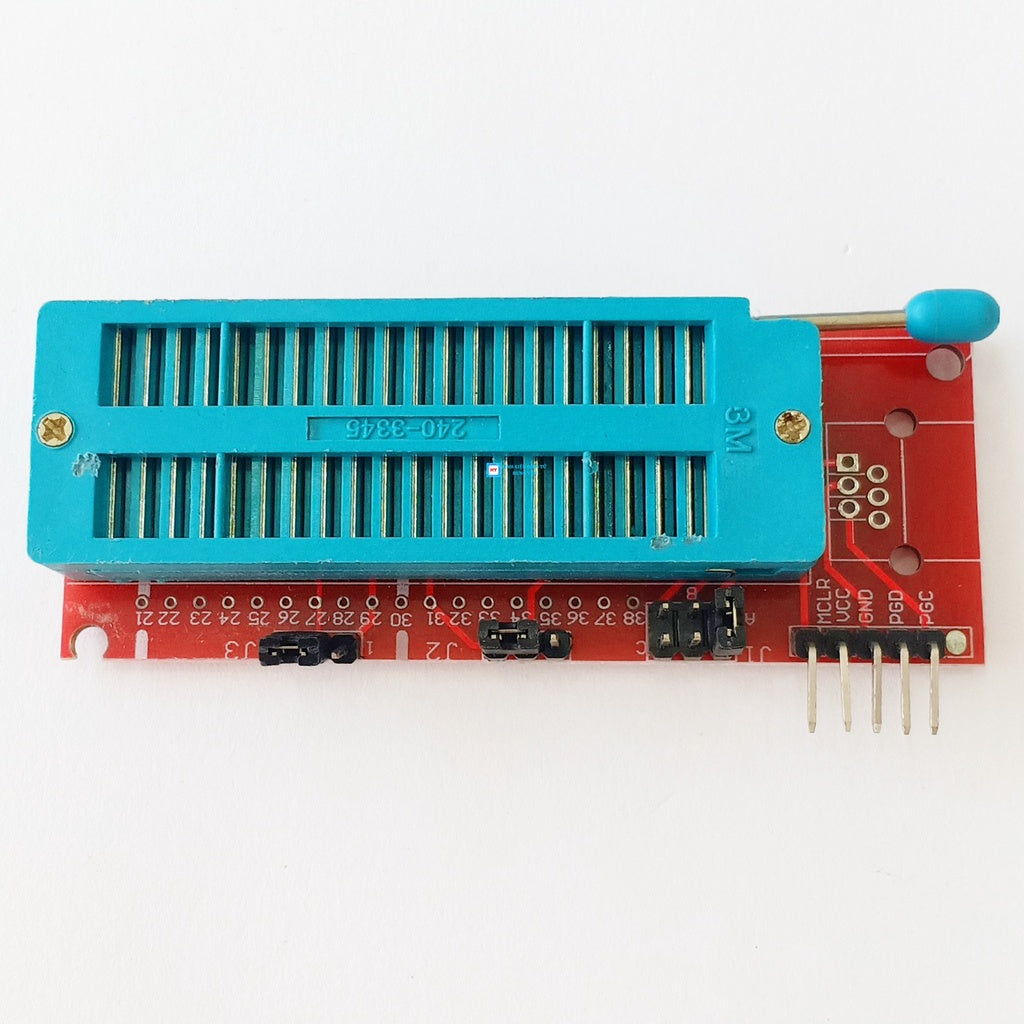

PIC ICD2 PICKIT2 PICKIT3Programming Adapter Seat

The PIC ICD2 PICKIT2 PICKIT3Programming adapter seat is a universal programming board for DIP PIC microcontrollers. Drop the chip into the zero insertion force (ZIF) socket, connect your PICkit 2, PICkit 3 or ICD2 programmer, and program, read or verify the chip without building a circuit on a breadboard. It accepts 8, 14, 18, 20, 28 and 40-pin DIP PIC chips.

PIC ICD2 PICKIT2 PICKIT3Programming Adapter Specifications

• Compatible programmers: PICkit 2, PICkit 3 and ICD2
• Connection: 6-pin ICSP header or ICD2 modular socket
• Socket: ZIF (zero insertion force)
• Supported chips: PIC16 and PIC18 series in 18, 28 and 40-pin DIP, plus 8, 14 and 20-pin PIC families
• Not supported: PIC10F series, PIC16F57 and PIC16F59
• Chip size selection: shorting jumper sets the position for 28/40-pin or 8–20-pin chips

PIC ICD2 PICKIT2 PICKIT3Programming Adapter Applications

• Programming PIC chips for projects and small production runs
• Reading, verifying and erasing PIC microcontrollers
• Embedded systems and microcontroller courses
• Updating or replacing chips during repairs

What's in the Box

• 1 × PIC programming adapter seat (programmer not included)

Tip: Place the chip with pin 1 aligned as marked on the board, set the jumper for the chip's pin count and close the ZIF lever before programming. Check that the target voltage set in MPLAB or the PICkit software matches the chip you are programming.
