PIC K150 ICSP Programmer USB Automatic Programming (Windows 10 Compatible)

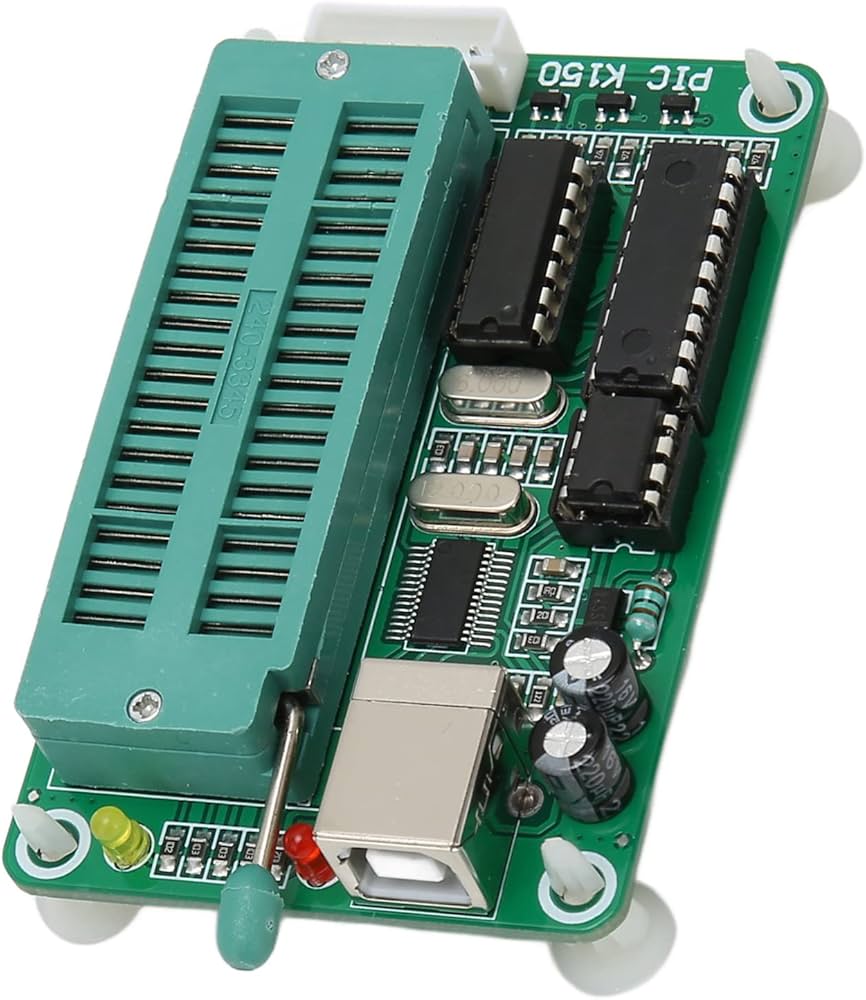

The PIC K150 ICSP Programmer is a low-cost USB programmer for Microchip PIC microcontrollers. Chips in DIP packages from 8 to 40 pins fit its 40-pin ZIF socket, and an ICSP output lets you program PICs already fitted on your own board. This green board version is compatible with Windows 10 and is powered from the USB port, so no external adapter is needed.

PIC K150 ICSP Programmer Specifications

• Interface: USB, which also powers the programmer
• Programming socket: 40-pin ZIF for DIP chips from 8 to 40 pins
• In-circuit programming: ICSP output
• Supported devices: many PIC10, PIC12, PIC16 and PIC18 chips, for example PIC12F508, PIC16F84A, PIC16F877A and PIC18F4550 (see the device list in the software)
• Functions: read, write, verify and code protection
• Software: MicroBrn K150 programming software for Windows

PIC K150 ICSP Programmer Applications

• Programming PIC microcontrollers for university and school projects
• Loading firmware into small production runs
• Reading and verifying chip contents
• In-circuit programming of PICs on prototype boards
• Learning embedded C with MPLAB X or mikroC

What's in the Box

• 1 × PIC K150 ICSP USB programmer

Tip: Install the USB driver and the MicroBrn software before plugging in the board, then select the correct COM port. Load your compiled .hex file, choose the exact PIC model, and check the chip position in the ZIF socket for your pin count before closing the lever.
