Prototype PCB Board for Arduino MEGA2560 R3 Shield Board FR-4 Type B

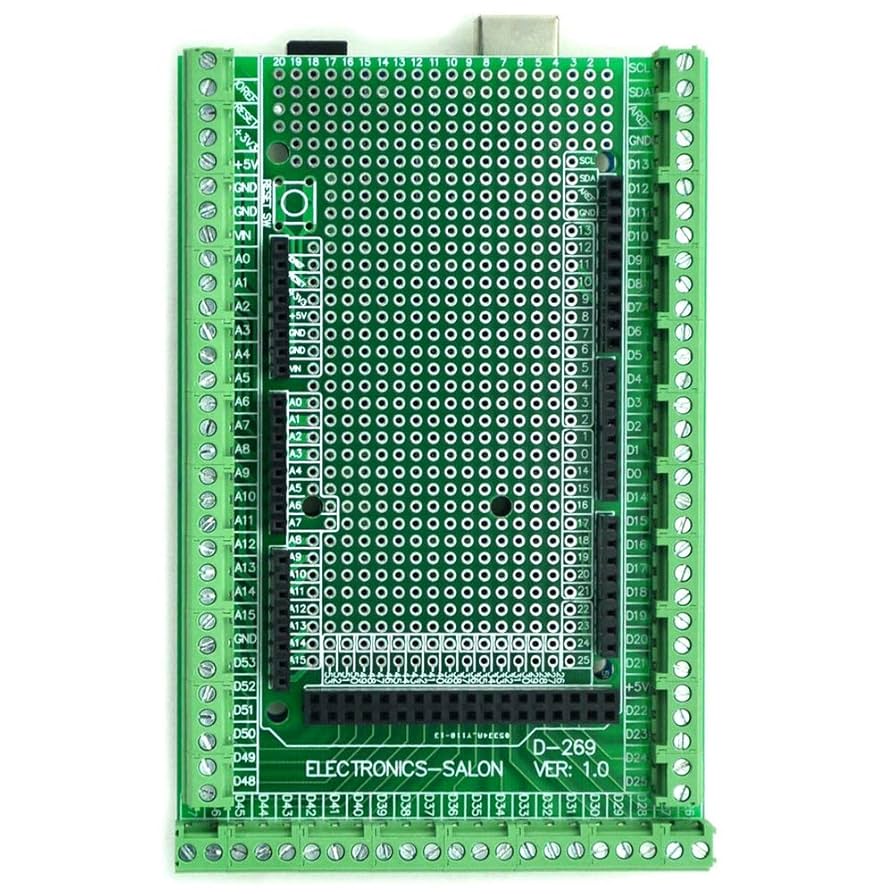

The Arduino MEGA2560 R3 Shield Board is a prototype PCB made from FR-4 that matches the shape and header layout of the Arduino Mega 2560 R3. Solder your own headers, components and wiring onto it to build a custom shield that plugs straight on top of the Mega, keeping your project neat and permanent instead of loose on a breadboard.

Arduino MEGA2560 R3 Shield Board Specifications

• Compatible board: Arduino Mega 2560 R3 and compatible boards
• Material: FR-4 glass-fibre PCB
• Hole pitch: 2.54 mm (0.1 in) prototyping holes
• Version: Type B
• Assembly: requires soldering of headers and components

Arduino MEGA2560 R3 Shield Board Applications

• Custom shields for Mega projects that use many I/O pins
• Motor, relay and sensor interface boards
• Robotics and home automation controllers
• Permanent versions of breadboard prototypes
• University and final-year projects

What's in the Box

• 1 × prototype PCB for Arduino Mega 2560 R3 (Type B)

Tip: To get the headers straight, plug them into the Arduino Mega first, place the PCB on top and then solder them. Put a piece of insulating tape on top of the Mega's metal USB socket so it cannot short the solder joints above it.
