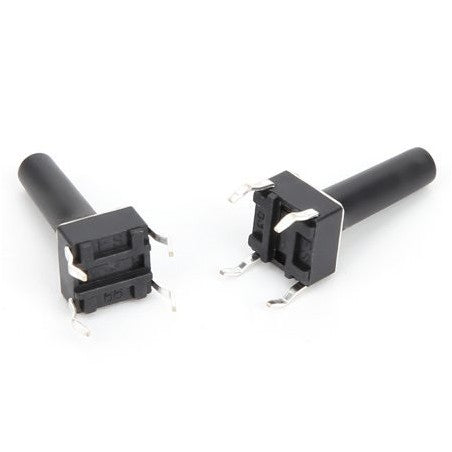

Push Button (5pcs) 6x6x15mm

The Push Button (5pcs) 6x6x15mm pack contains five 6 × 6 mm tactile push button switches with a height of 15 mm, so the button stands well above the board and is easy to reach through a panel or the lid of a case. Each switch is momentary: it closes the circuit only while pressed and springs back with a click when released.

Push Button (5pcs) 6x6x15mm Specifications

• Size: 6 × 6 mm body, 15 mm height
• Action: momentary, normally open (closes only while pressed)
• Pins: 4 (DIP), joined internally in two pairs
• Mounting: through-hole, for PCBs, perfboards and breadboards
• Pack size: 5 pieces

Push Button (5pcs) 6x6x15mm Applications

• Digital inputs for Arduino, ESP32 and Raspberry Pi projects
• Buttons that must reach through a front panel or enclosure
• Reset, start and mode buttons on custom PCBs
• Keypads, game controllers and menu navigation
• Electronics classes and STEM kits

What's in the Box

• 5 × 6 × 6 × 15 mm tactile push buttons

Tip: Use INPUT_PULLUP in your Arduino code so the pin reads LOW only while the button is pressed. If the input reads as always pressed, the button is placed across an internally joined pair of pins: rotate it 90° or check the pins with a multimeter.
