Qwiic Cable (Sparkfun) PRT-14427 100mm

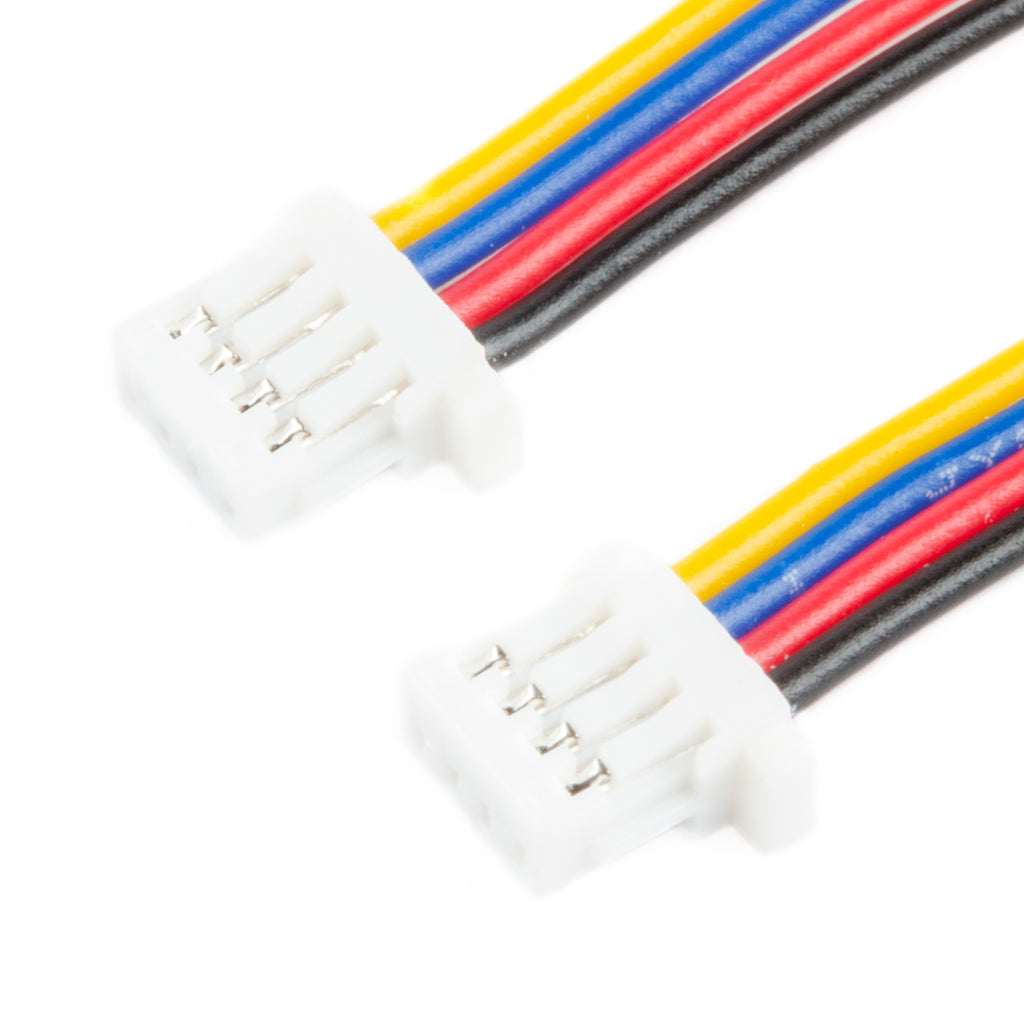

The Qwiic Cable PRT-14427 from SparkFun is a 100 mm, 4-wire cable with a 1 mm pitch JST connector on each end. It plugs straight into any Qwiic-enabled board, so you can chain I2C sensors, displays and controllers together in seconds without soldering or worrying about wiring the wrong pin.

Qwiic Cable PRT-14427 Specifications

• Part number: SparkFun PRT-14427
• Length: 100 mm
• Connectors: 4-pin JST, 1 mm pitch, on both ends
• Wire colours: black (GND), red (3.3 V), blue (SDA), yellow (SCL)
• Bus: I2C, Qwiic connect system

Qwiic Cable Applications

• Linking SparkFun Qwiic sensors to a Qwiic-enabled microcontroller board
• Daisy-chaining several I2C modules on one bus
• Connecting Adafruit STEMMA QT boards, which use the same 4-pin connector
• Quick prototyping and classroom projects without soldering

What's in the Box

• 1 × Qwiic cable, 100 mm

Tip: Qwiic is a 3.3 V system, so do not connect it directly to 5 V I2C lines without a level shifter. Every device on the same chain needs its own I2C address.

Orders placed before 14:00 are ready for pickup the same day. Delivery across Lebanon usually takes 1–3 working days.
