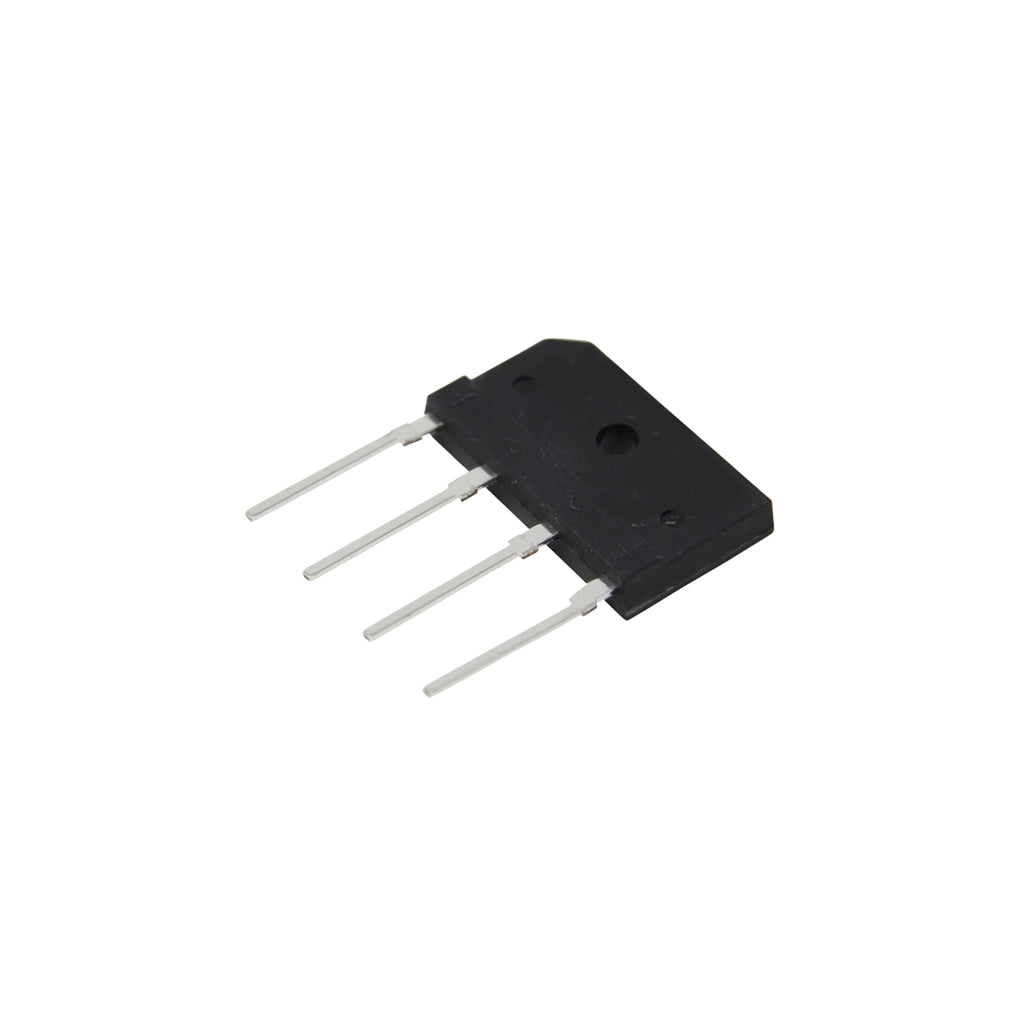

Rectifier Bridge KBP206 2A 600V

The Rectifier Bridge KBP206 2A 600V is a single-phase full-wave bridge rectifier that combines four diodes in one compact package with four in-line leads. It converts AC, for example from a transformer secondary, into DC with an average output current of up to 2 A, and its 600 V peak reverse voltage rating gives a wide safety margin in low-voltage power supplies.

Rectifier Bridge KBP206 2A 600V Specifications

• Type: single-phase full-wave bridge (4 diodes)
• Average output current: 2 A
• Peak repetitive reverse voltage: 600 V
• Maximum RMS input voltage: 420 V
• Package: KBP, 4 in-line leads (two AC, + and −)

Rectifier Bridge KBP206 2A 600V Applications

• DC power supplies built with a step-down transformer
• Battery chargers and LED drivers
• Polarity protection on DC inputs, so a device works with either wire order
• Repair of power boards, adapters and appliances
• Power electronics labs and student projects

What's in the Box

• 1 × KBP206 bridge rectifier

Tip: The + and − leads are marked on the body and the two ~ leads go to the AC source. Add a smoothing capacitor after the bridge: the DC output peaks at about 1.41 × the AC RMS voltage minus roughly 2 V for two diode drops, so 12 V AC gives about 15 V DC.
