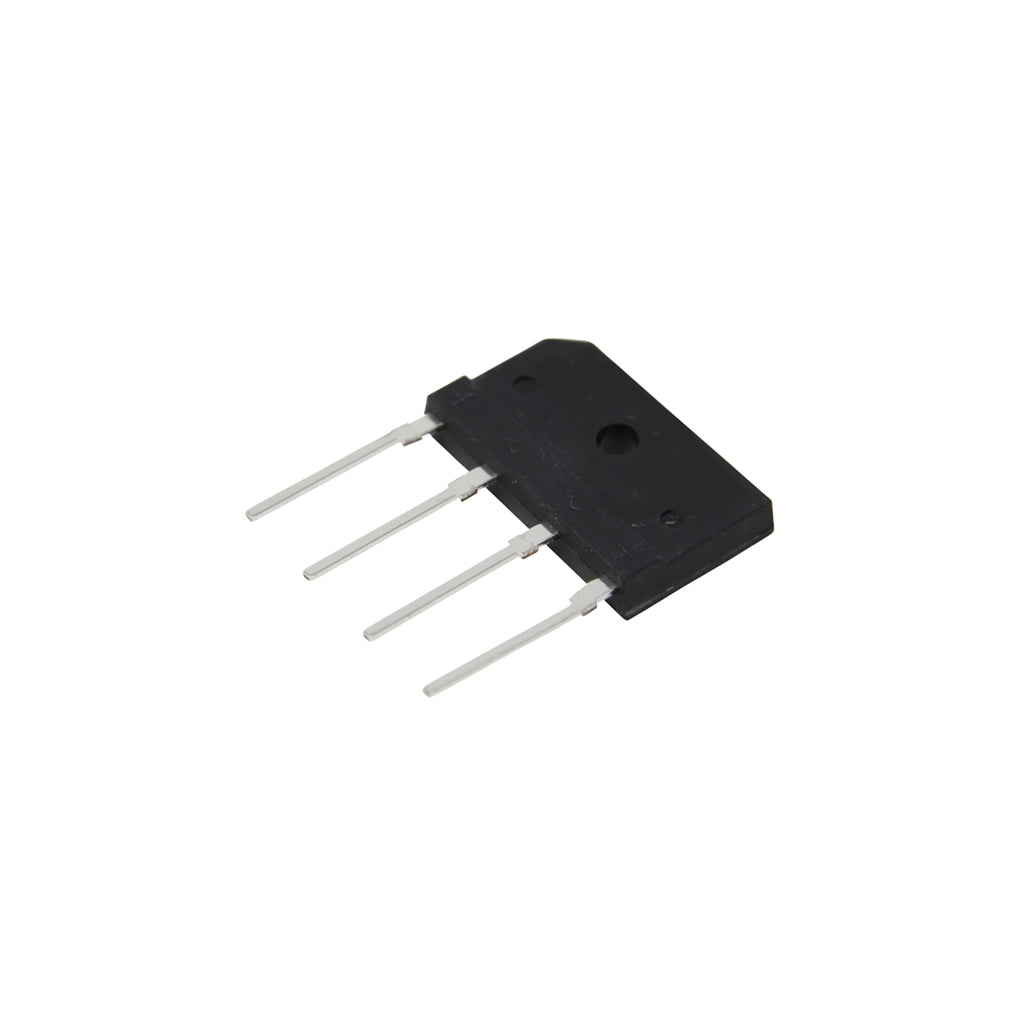

Rectifier Bridge PB153M 1.5A 200V

The Rectifier Bridge PB153M 1.5A 200V is a single-phase full-wave bridge rectifier rated for 1.5 A and 200 V. It combines four diodes in one component, so a single part turns AC from a transformer into DC, saving board space and wiring compared with four separate diodes. It suits small power supplies, chargers and adapters that run from a low-voltage AC transformer.

Rectifier Bridge PB153M 1.5A 200V Specifications

• Type: single-phase full-wave bridge rectifier
• Maximum reverse voltage: 200 V
• Forward current: 1.5 A
• Terminals: 4 (two AC inputs marked ~, plus + and − DC outputs)
• Internal circuit: four rectifier diodes in a bridge

Rectifier Bridge PB153M 1.5A 200V Applications

• DC power supplies built around a 6 V to 24 V AC transformer
• Battery chargers and small adapters
• Polarity-proof DC inputs that work either way round
• Repair of power boards and small appliances
• Electronics teaching labs and power supply projects

What's in the Box

• 1 × PB153M bridge rectifier, 1.5 A 200 V

Tip: Check the + and − markings on the body before soldering, connect the two ~ terminals to the AC source and add a smoothing capacitor across + and −. Expect roughly 1.5–2 V to be lost across the two conducting diodes, and keep the load current below 1.5 A.
