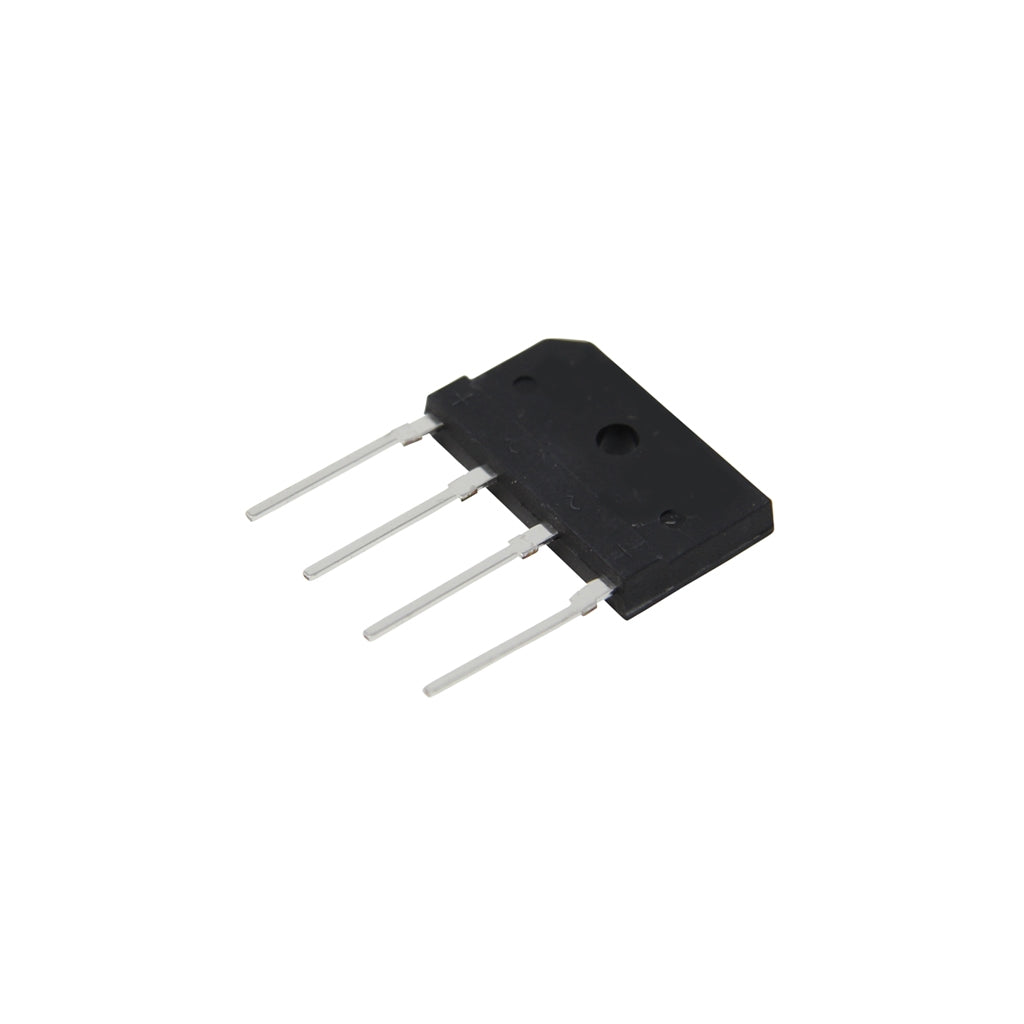

Rectifier Bridge PB203M 2A 200V

The Rectifier Bridge PB203M 2A 200V is a single-phase full-wave bridge rectifier rated for 2 A and 200 V. It combines four diodes in one component, so a single part turns AC from a transformer into DC, saving board space and wiring compared with four separate diodes. It suits small power supplies, chargers and adapters that run from a low-voltage AC transformer.

Rectifier Bridge PB203M 2A 200V Specifications

• Type: single-phase full-wave bridge rectifier
• Maximum reverse voltage: 200 V
• Forward current: 2 A
• Terminals: 4 (two AC inputs marked ~, plus + and − DC outputs)
• Internal circuit: four rectifier diodes in a bridge

Rectifier Bridge PB203M 2A 200V Applications

• DC power supplies built around a 12 V to 48 V AC transformer
• Battery chargers and small adapters
• Polarity-proof DC inputs that work either way round
• AC to DC for relays, solenoids and controllers
• Electronics teaching labs and repair work

What's in the Box

• 1 × PB203M bridge rectifier, 2 A 200 V

Tip: The 200 V rating is not enough for 230 V mains, which peaks at about 325 V; use an 800 V or 1000 V bridge there. Connect the two ~ terminals to the transformer, add a smoothing capacitor across + and −, and expect about 1.5–2 V to be lost across the two conducting diodes.
