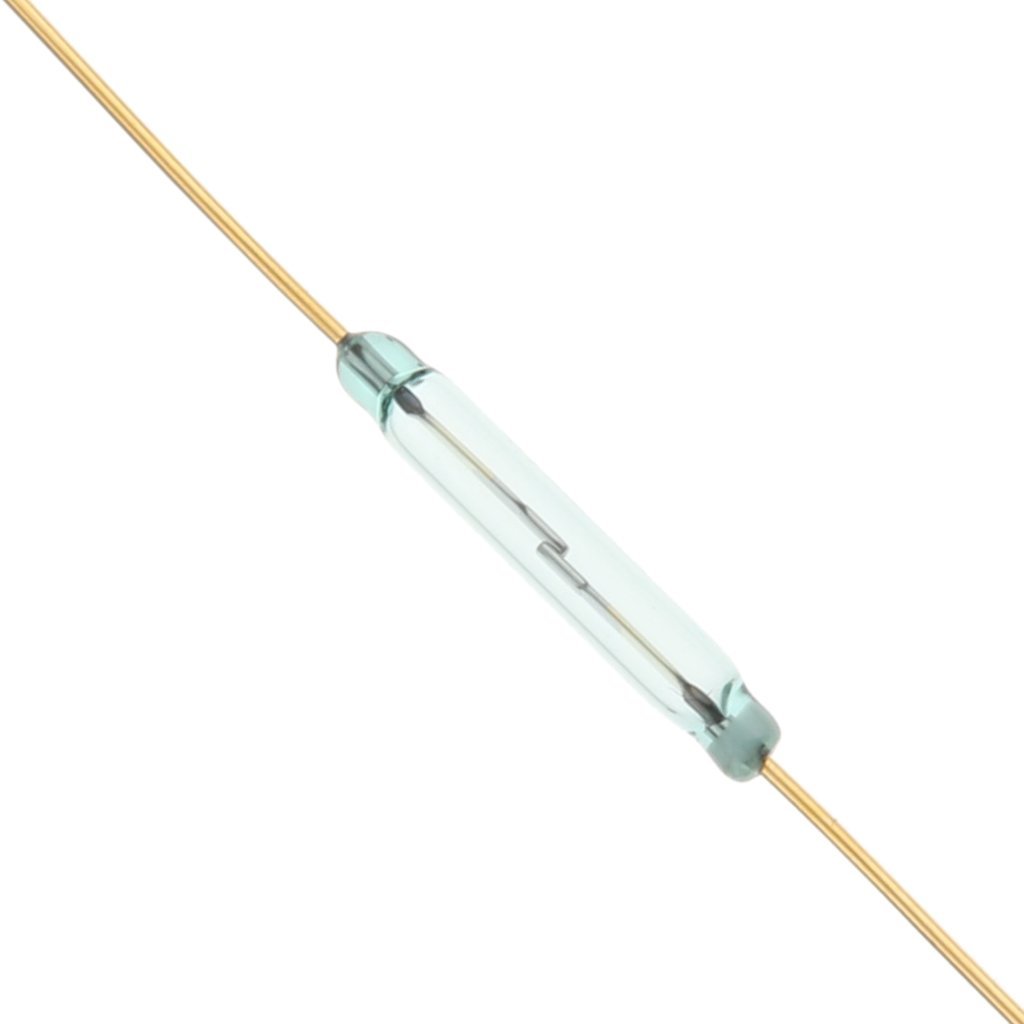

Reed Switch 50mm

The Reed Switch 50mm is a magnetically operated switch with its contacts sealed inside a glass tube. When a magnet is brought close, the thin metal reeds inside change state and switch the circuit; when the magnet moves away, they return to their rest position. Because nothing touches the contacts from outside, it is a simple and reliable way to detect position without physical contact.

Reed Switch 50mm Specifications

• Type: reed switch with glass-sealed contacts
• Length: 50 mm
• Operation: switched by a nearby permanent magnet or electromagnet
• Leads: wire leads for soldering or breadboard use
• Power needed: none for the switch itself; it works like a mechanical switch

Reed Switch 50mm Applications

• Door and window alarm sensors
• Bicycle speedometers and rotation counters
• Liquid level float switches
• Magnet proximity detection with Arduino, ESP32 or Raspberry Pi
• Hidden switches in models and puzzles

What's in the Box

• 1 × 50 mm reed switch

Tip: The glass body is fragile: bend the leads with pliers a few millimetres away from the glass and do not overheat it when soldering. When reading it with a microcontroller, use a pull-up resistor or the board's internal pull-up.
