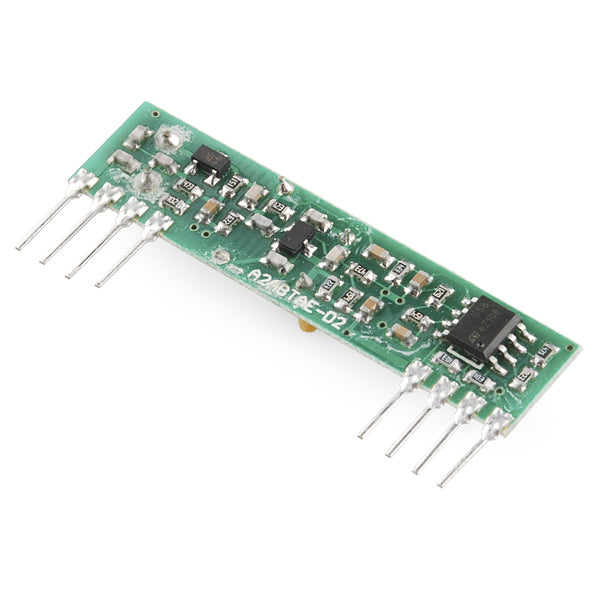

RF Link Receiver Sparkfun WRL-10532 433Mhz

Part no. 10062456

$11.00
In stock
  • Pick up in Msaitbeh, Beirut
  • Delivery across Lebanon
  • Bulk and education pricing on request
Description

The RF Link Receiver Sparkfun WRL-10532 is a small 433 MHz band receiver module for simple one-way wireless data links. Paired with a matching 433 MHz transmitter, it lets one Arduino or other microcontroller send short messages, sensor readings or remote-control commands to another without wires. Its digital data output connects directly to a microcontroller input pin, which makes it an easy first step into radio projects.

RF Link Receiver Sparkfun WRL-10532 Specifications

  • Part number: WRL-10532
  • Frequency: 433 MHz ISM band (listed by SparkFun as 434 MHz)
  • Modulation: ASK (on-off keying)
  • Data rate: up to 4800 bps
  • Supply voltage: 5 V
  • Output: digital data pin
  • Function: receiver only; needs a separate 433 MHz transmitter

RF Link Receiver Sparkfun WRL-10532 Applications

  • Wireless sensor nodes sending readings to a base station
  • Remote controls for robots, lights and doors
  • Doorbells, alarms and simple home automation
  • Learning wireless communication with Arduino

What's in the Box

  • 1 × RF Link Receiver WRL-10532 (433 MHz), transmitter not included

Tip: Use the RadioHead (RH_ASK) or VirtualWire library rather than plain serial, as they filter out the noise the receiver outputs when no signal is present. A 17 cm wire on the antenna pin greatly improves range compared with no antenna.
