RF Nano Integrated NRF24L01 Wireless Module with Soldering

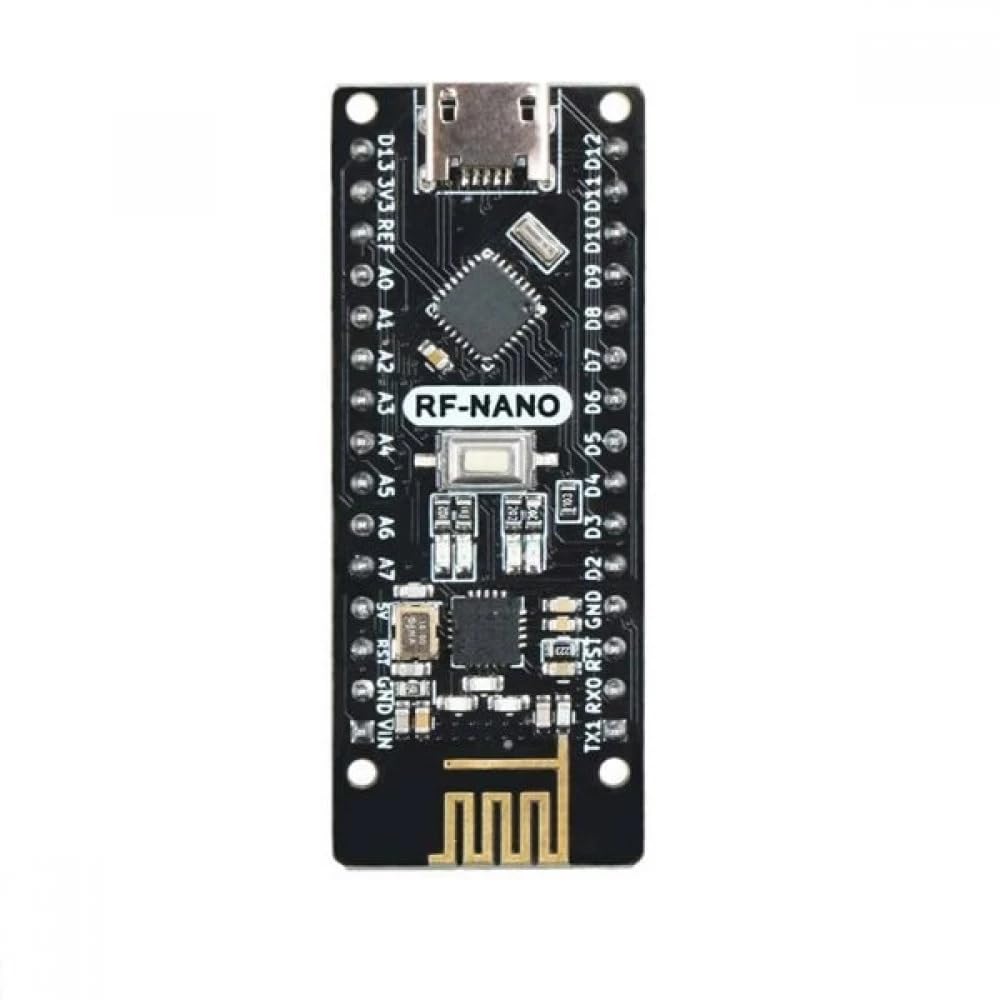

The RF Nano Integrated NRF24L01 wireless module is an Arduino Nano compatible board with an nRF24L01 2.4 GHz radio built onto the same PCB. Instead of wiring a separate radio module, you program it in the Arduino IDE like a normal Nano and use the RF24 library to send data between two or more boards. This version comes with the soldering done, so the pin headers are ready for a breadboard.

RF Nano Integrated NRF24L01 Specifications

• Microcontroller: ATmega328P, 16 MHz (Arduino Nano compatible)
• Wireless: integrated nRF24L01 2.4 GHz transceiver
• Programming: Arduino IDE over USB, board type Arduino Nano
• Form factor: Arduino Nano size and pinout
• Headers: soldered

RF Nano Integrated NRF24L01 Applications

• Wireless remote controls for robots and RC cars
• Sensor nodes sending readings to a base station
• Home automation and wireless switches
• Wireless data links between two Arduino projects

What's in the Box

• 1 × RF Nano board with integrated nRF24L01

Tip: The radio is wired internally to two digital pins for CE and CSN (commonly D9 and D10), so keep those pins free and set them correctly in your RF24 code. If uploads fail, install the board's USB-serial driver and try the ATmega328P (Old Bootloader) processor option.
