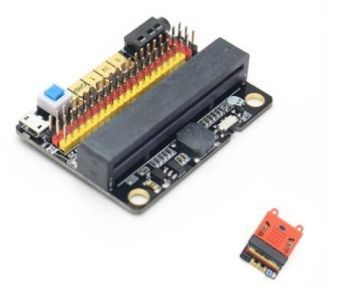

Robotbit IOBIT V2.0 Micro:bit Expansion Board

The IOBIT V2.0 Micro:bit Expansion Board is a compact KittenBot breakout board for the BBC micro:bit. Plug the micro:bit into its edge connector and every programmable pin is brought out to 2.54 mm headers with colour-coded ground, power and signal pins, so you can connect sensors, servos and modules with ordinary jumper wires. It also adds a buzzer, an audio jack, a power button and fuse protection, which makes it handy for classrooms and beginner projects.

IOBIT V2.0 Micro:bit Expansion Board Specifications

• Compatible with: BBC micro:bit (not included)
• Pin headers: all I/O pins on 2.54 mm headers, colour-coded ground, power and signal
• Power input: USB 5 V with on/off power button
• Outputs: 3 V and 5 V rails, up to 1 A combined
• Protection: 1 A self-recovery fuse
• Extras: on-board buzzer, 3.5 mm audio jack, alligator clip pads, 2 LEGO-compatible pin holes
• Size: about 57 × 44 × 12 mm

IOBIT V2.0 Micro:bit Expansion Board Applications

• Connecting sensors, LEDs and small servos to a micro:bit
• MakeCode music and sound projects with the buzzer
• LEGO-based robots and models
• STEM and coding classes in schools

What's in the Box

• 1 × IOBIT V2.0 expansion board (micro:bit not included)

Tip: Keep the total load on the 3 V and 5 V outputs under 1 A; a few small servos are fine, but larger motors need a separate driver and supply. Pins 19 and 20 are used for I2C, and some other pins are shared with the micro:bit LED display, so disable the display in code when you use them.
