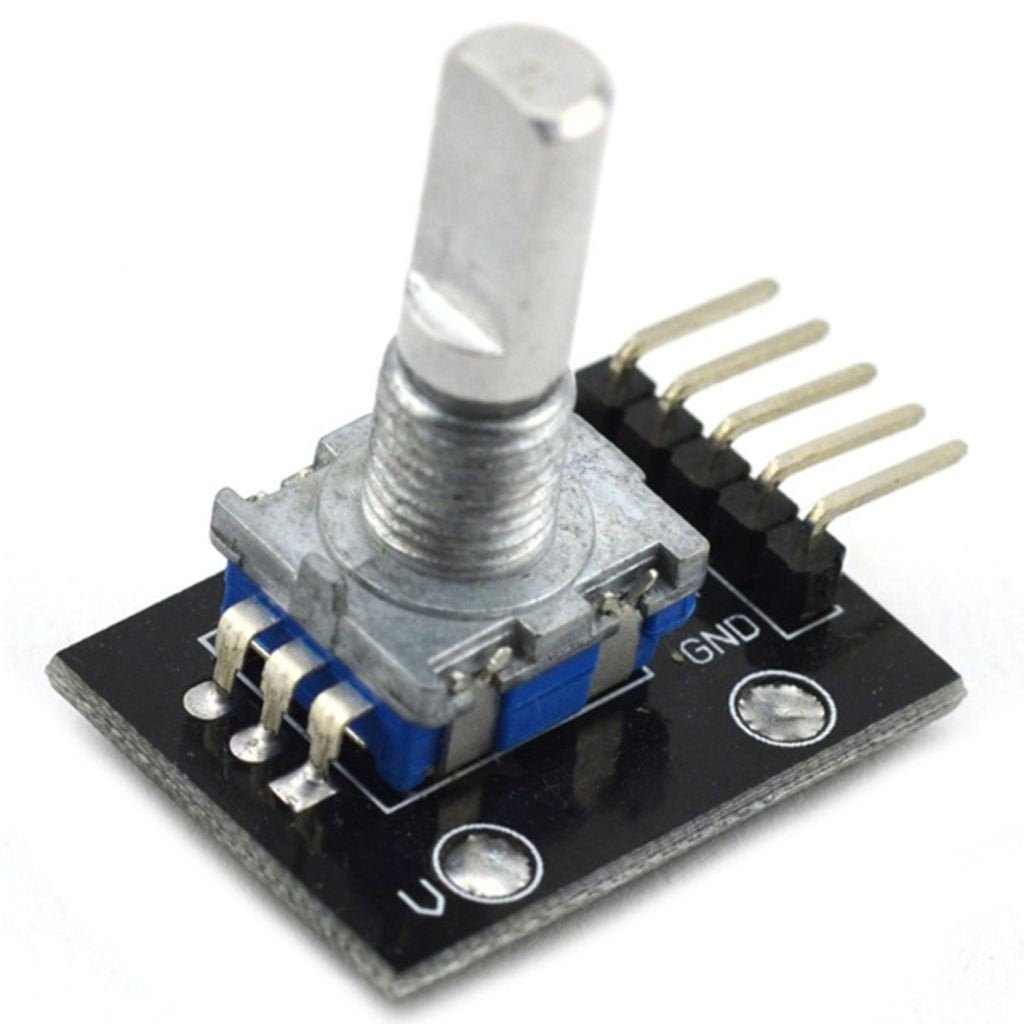

Rotary Encoder Module

The Rotary Encoder Module is an incremental encoder on a small breakout board that turns knob rotation into digital pulses. Unlike a potentiometer it turns endlessly in either direction, and its two outputs tell your Arduino or ESP32 both how far and which way it was turned. The shaft also works as a push button, which makes it ideal for menus and settings.

Rotary Encoder Module Specifications

• Type: incremental rotary encoder with detents
• Outputs: 2-channel quadrature (A/B) digital signals
• Push switch: built in, pressed by pushing the shaft
• Pins: CLK, DT, SW, + (VCC) and GND
• Rotation: continuous 360°, no end stop
• Supply: 3.3 V or 5 V boards

Rotary Encoder Module Applications

• Menu navigation with LCD and OLED displays
• Volume and brightness control
• Setting timers, temperatures and motor speed
• Manual input for CNC and 3D printer controllers
• Arduino and robotics learning projects

What's in the Box

• 1 × rotary encoder module

Tip: Read CLK and DT with interrupts or an encoder library to get reliable counts when the knob is turned quickly. Enable INPUT_PULLUP on the SW pin, since the push switch usually has no pull-up resistor on the board.
