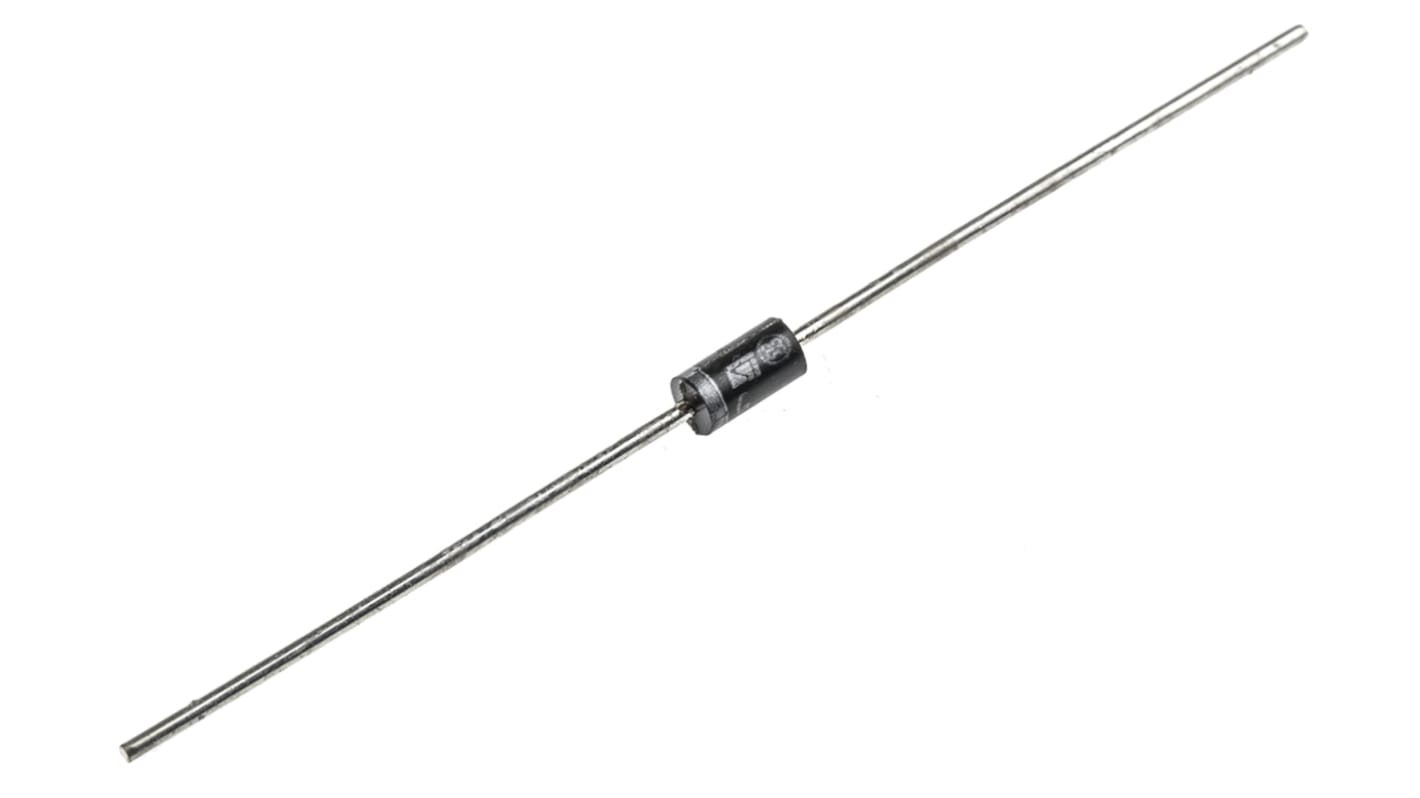

Schottky Diode1N5819 (5pcs)

The Schottky Diode1N5819 pack contains five 1N5819 Schottky barrier rectifier diodes rated 40 V and 1 A. Schottky diodes have a much lower forward voltage drop and faster switching than standard silicon rectifiers such as the 1N4007, which makes the 1N5819 a common choice for DC-DC converters, solar chargers and reverse-polarity protection in low-voltage circuits.

Schottky Diode1N5819 Specifications

• Part number: 1N5819
• Type: Schottky barrier rectifier
• Maximum repetitive reverse voltage: 40 V
• Average forward current: 1 A
• Peak surge current: 25 A (non-repetitive)
• Forward voltage: up to 0.6 V at 1 A
• Package: DO-41 axial, through-hole
• Pack size: 5 pieces

Schottky Diode1N5819 Applications

• Freewheeling and output diodes in buck, boost and other switching regulators
• Reverse-polarity protection for battery-powered projects
• Blocking diodes for small solar panels
• OR-ing two power sources, such as USB and battery

What's in the Box

• 5 × 1N5819 Schottky diodes

Tip: The band on the body marks the cathode (−). Keep the reverse voltage below 40 V, and remember that Schottky diodes leak more current in reverse than silicon diodes, especially when they are hot.
