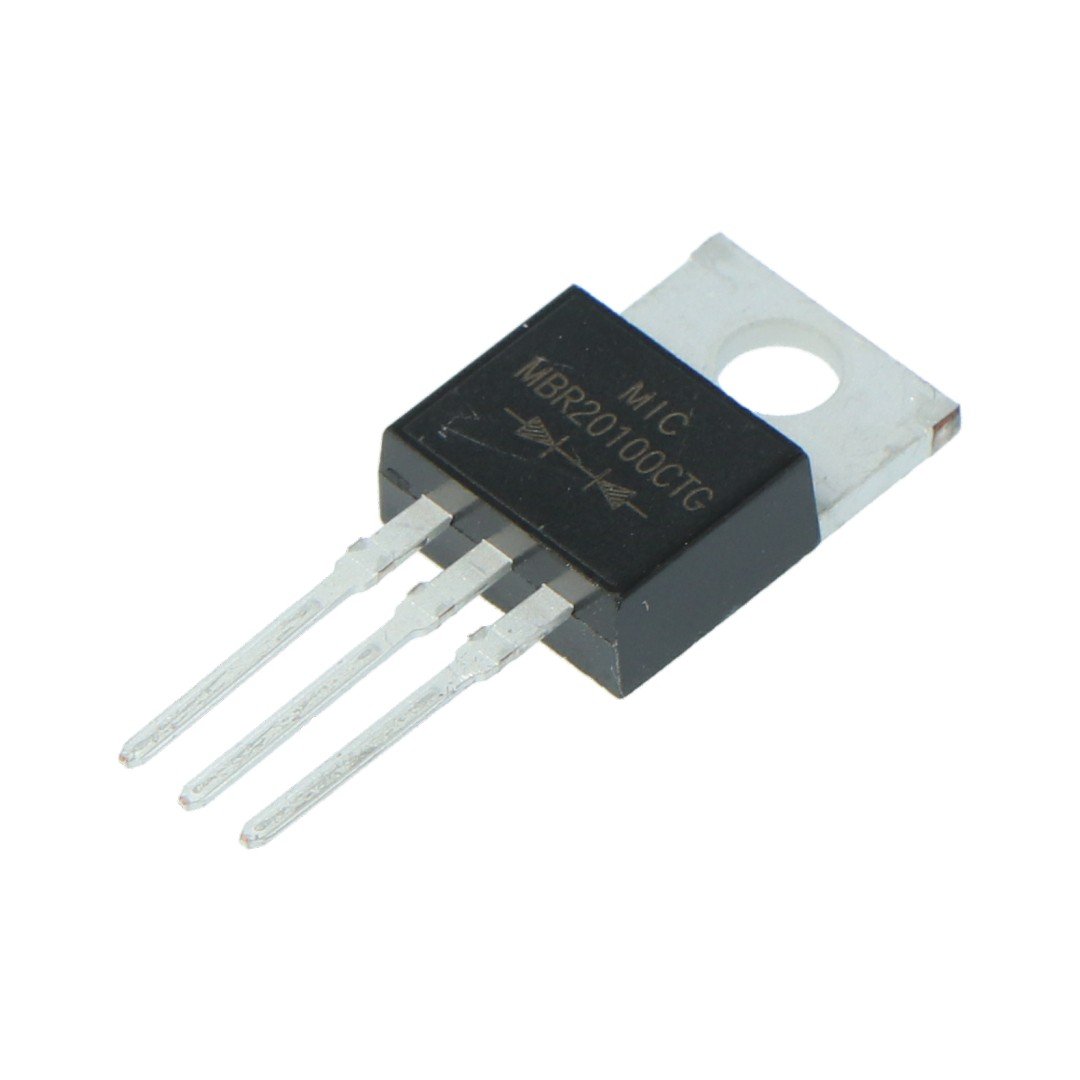

Schottky Diode MBR20100

The Schottky Diode MBR20100 is a high-current Schottky barrier rectifier rated for 100 V reverse voltage and 20 A average forward current. Schottky diodes switch very fast and drop less voltage than standard silicon rectifiers, so they waste less power as heat. That makes the MBR20100 a good choice for switching power supplies, solar panel blocking diodes and reverse-polarity protection in high-current circuits.

Schottky Diode MBR20100 Specifications

• Type: Schottky barrier rectifier
• Repetitive peak reverse voltage: 100 V
• Average forward current: 20 A
• Forward voltage: lower than a standard silicon rectifier diode
• Package: TO-220 type, through-hole, with a metal tab for heatsink mounting

Schottky Diode MBR20100 Applications

• Output rectifiers in switch-mode power supplies
• Blocking diodes between solar panels and batteries
• Reverse-polarity and OR-ing protection on DC power inputs
• Freewheeling diodes for motors and inductive loads
• DC-DC converters and battery chargers

What's in the Box

• 1 × MBR20100 Schottky diode

Tip: At high current the diode gets hot, so mount it on a heatsink. The common MBR20100CT version contains two diodes sharing a cathode on the centre pin and tab, so check the datasheet pinout for your part before wiring.
