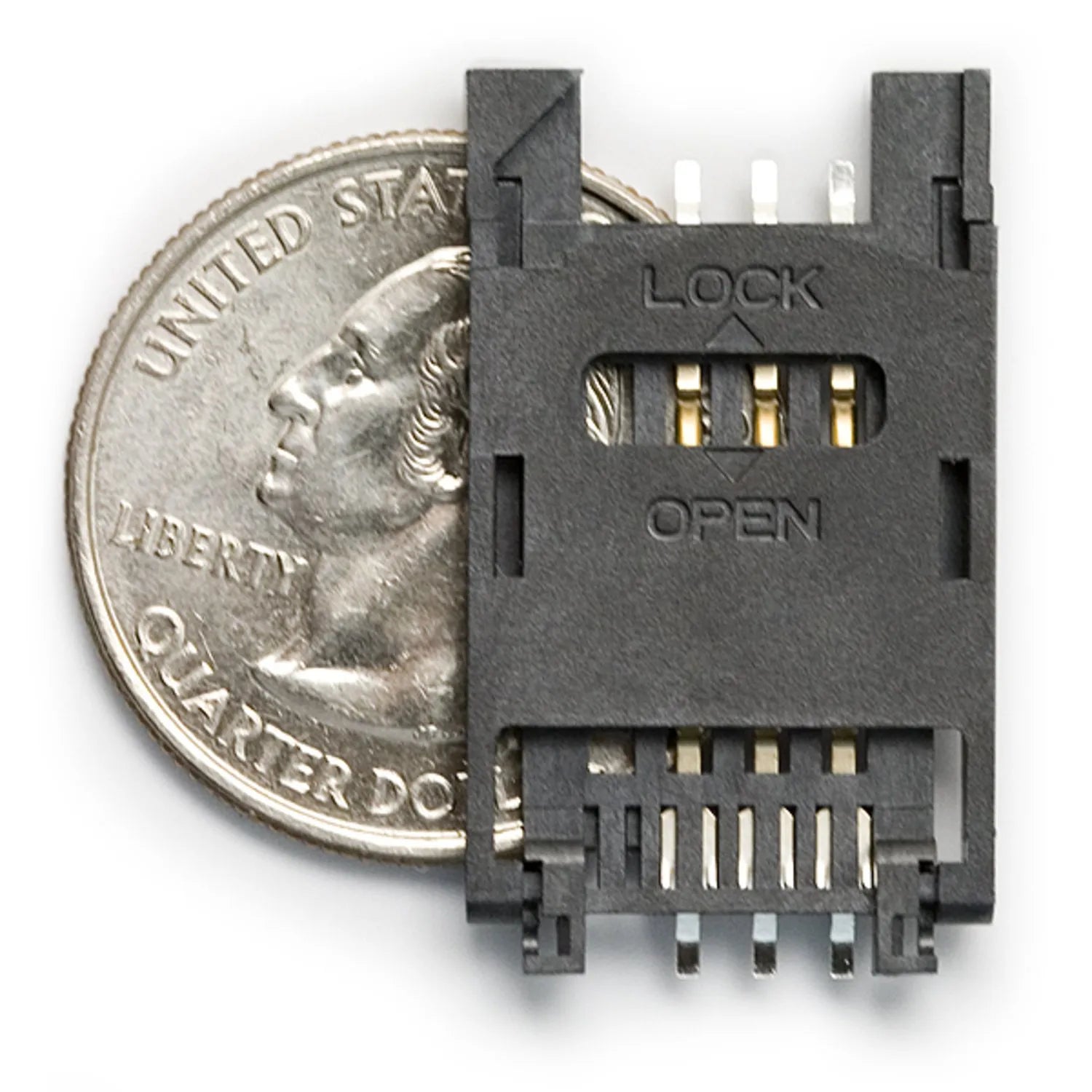

Sim Socket Sparkfun PRT-00548

Part no. 10021446

$2.00
Sold out
  • Pick up in Msaitbeh, Beirut
  • Delivery across Lebanon
  • Bulk and education pricing on request
Description

The Sim Socket Sparkfun PRT-00548 is a SIM card socket (SparkFun part number PRT-00548) for adding a SIM card holder to your own circuit board. Solder it next to a GSM, GPRS or LTE cellular module and wire its contacts to the module's SIM interface, and the module can read the card to make calls, send SMS and connect to the mobile data network. It suits makers and engineers designing custom trackers, alarms and IoT boards.

Sim Socket Sparkfun PRT-00548 Specifications

  • Part number: SparkFun PRT-00548
  • Type: SIM card socket (card holder) for a printed circuit board
  • Signals: carries the standard SIM card lines (VCC, GND, RST, CLK and I/O) between the card and the module
  • Works with: cellular modules that have a SIM interface, such as the SIM800 and SIM900 series
  • Mounting: soldered onto your PCB

Sim Socket Sparkfun PRT-00548 Applications

  • Custom GSM/GPRS and LTE boards for Arduino and ESP32 projects
  • GPS trackers and asset tracking devices
  • SMS alarm, remote control and monitoring systems
  • IoT gateways and data loggers that send data over the mobile network
  • Breakout boards and prototypes for cellular modules

What's in the Box

  • 1 × SIM card socket, SparkFun PRT-00548

Tip: Keep the SIM traces short and place a 100 nF capacitor on the SIM VCC line close to the socket. Check your module's datasheet for the SIM voltage (1.8 V or 3 V) and any ESD protection it recommends on the SIM lines.
