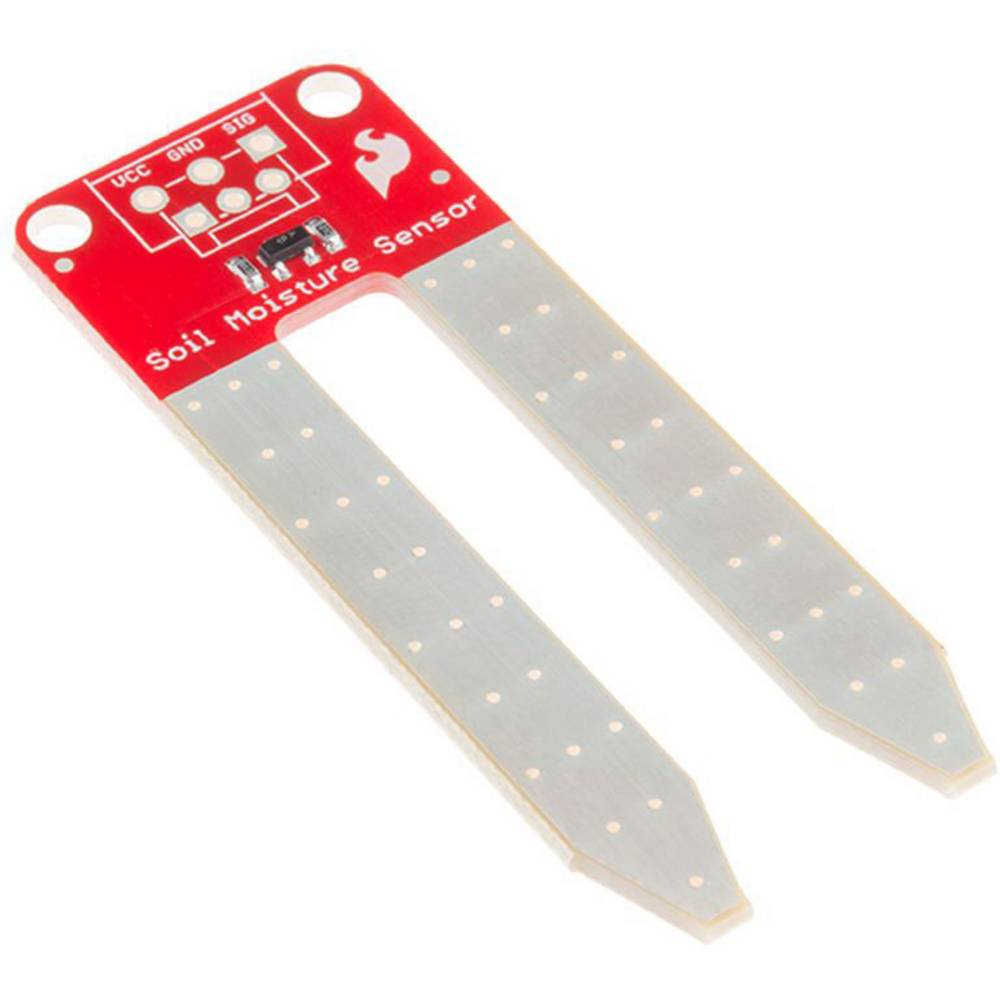

Soil Moisture Sensor Sparkfun SEN-13322

The Soil Moisture Sensor from SparkFun (SEN-13322) measures how wet the soil is using two large exposed pads that act as a variable resistor. The more water in the soil, the better it conducts and the higher the analog voltage on the SIG pin. The board has a gold (ENIG) finish to slow the corrosion that shortens the life of cheaper probes, making it a solid choice for plant monitors and irrigation projects.

Soil Moisture Sensor Specifications

• Model: SparkFun SEN-13322
• Sensing method: resistance between two exposed probe pads
• Supply voltage: 3.3–5 V
• Output: analog voltage on SIG, higher with more moisture
• Pins: VCC, GND and SIG
• Finish: ENIG (electroless nickel immersion gold)

Soil Moisture Sensor Applications

• Plant watering alarms and automatic irrigation
• Garden, greenhouse and pot plant monitoring
• ESP32 and Arduino IoT gardening dashboards
• School science projects on soil and plant growth

What's in the Box

• 1 × SparkFun Soil Moisture Sensor board (SEN-13322)

Tip: Power VCC from a digital pin and switch it on only while you take a reading; this greatly reduces corrosion of the probes. Calibrate by noting the reading in dry soil and in wet soil, as the values depend on your soil and supply voltage.
