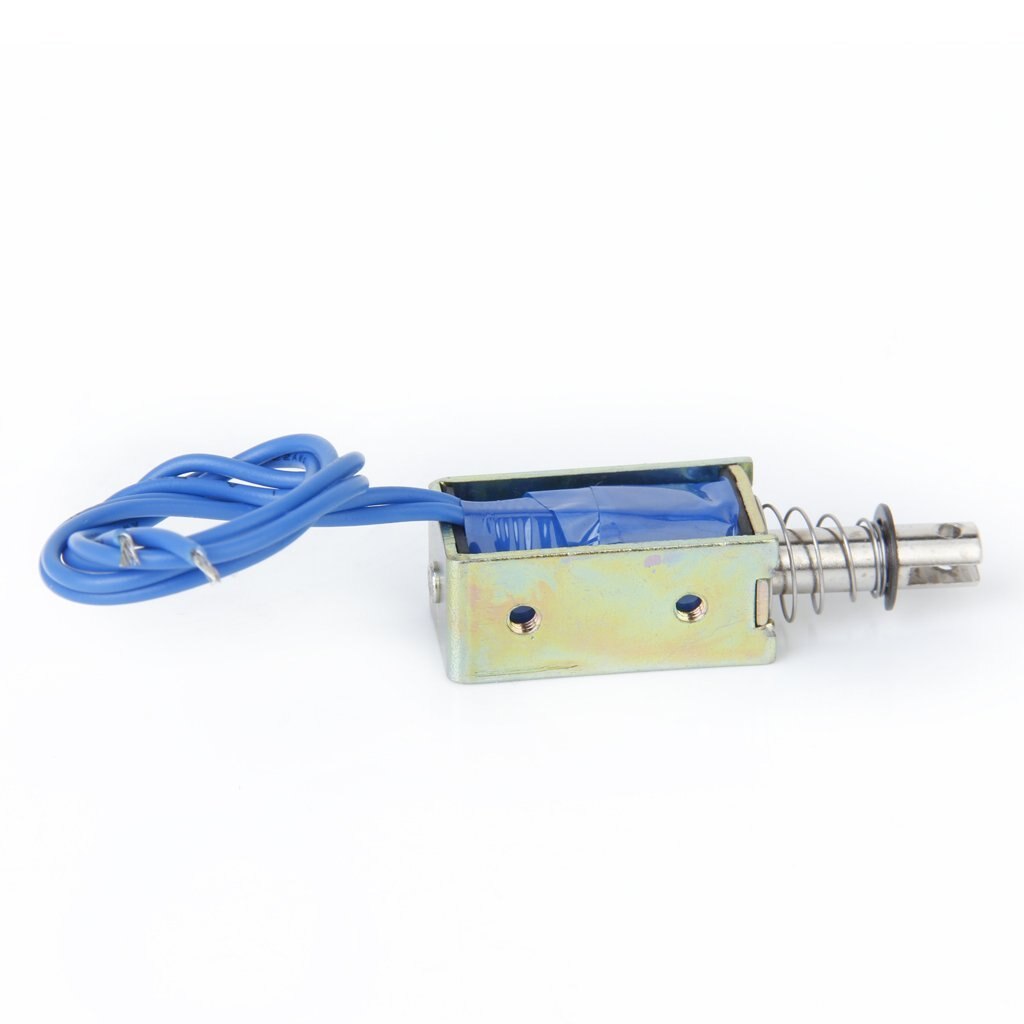

Solenoid 12V 1.5A 1564S-12C08

The Solenoid 12V 1.5A 1564S-12C08 is a DC solenoid actuator that turns electrical energy into a quick linear movement. It is rated for 12 V and draws about 1.5 A, which makes it a higher-power unit than small 5 V solenoids, suited to latches, locks, pushers and automation mechanisms that need a firm, fast action from a 12 V supply.

Solenoid 12V 1.5A 1564S-12C08 Specifications

• Model: 1564S-12C08
• Rated voltage: 12 V DC
• Rated current: 1.5 A
• Power: about 18 W (12 V × 1.5 A)
• Coil resistance: about 8 Ω (12 V ÷ 1.5 A)
• Type: electromagnetic solenoid with a moving plunger

Solenoid 12V 1.5A 1564S-12C08 Applications

• Electric door, cabinet and drawer latches
• Pushers and ejectors in sorting and dispensing machines
• DIY and industrial automation on 12 V systems
• Robotics, vending machine prototypes and test rigs

What's in the Box

• 1 × 12 V solenoid 1564S-12C08

Tip: Switch the solenoid with a logic-level MOSFET such as the IRLZ44N or a relay rated above 1.5 A, and fit a flyback diode such as a 1N4007 across the coil to protect the switch. Use a 12 V supply of at least 2 A, and keep each activation short unless the solenoid is rated for continuous duty, because the coil gets hot.
