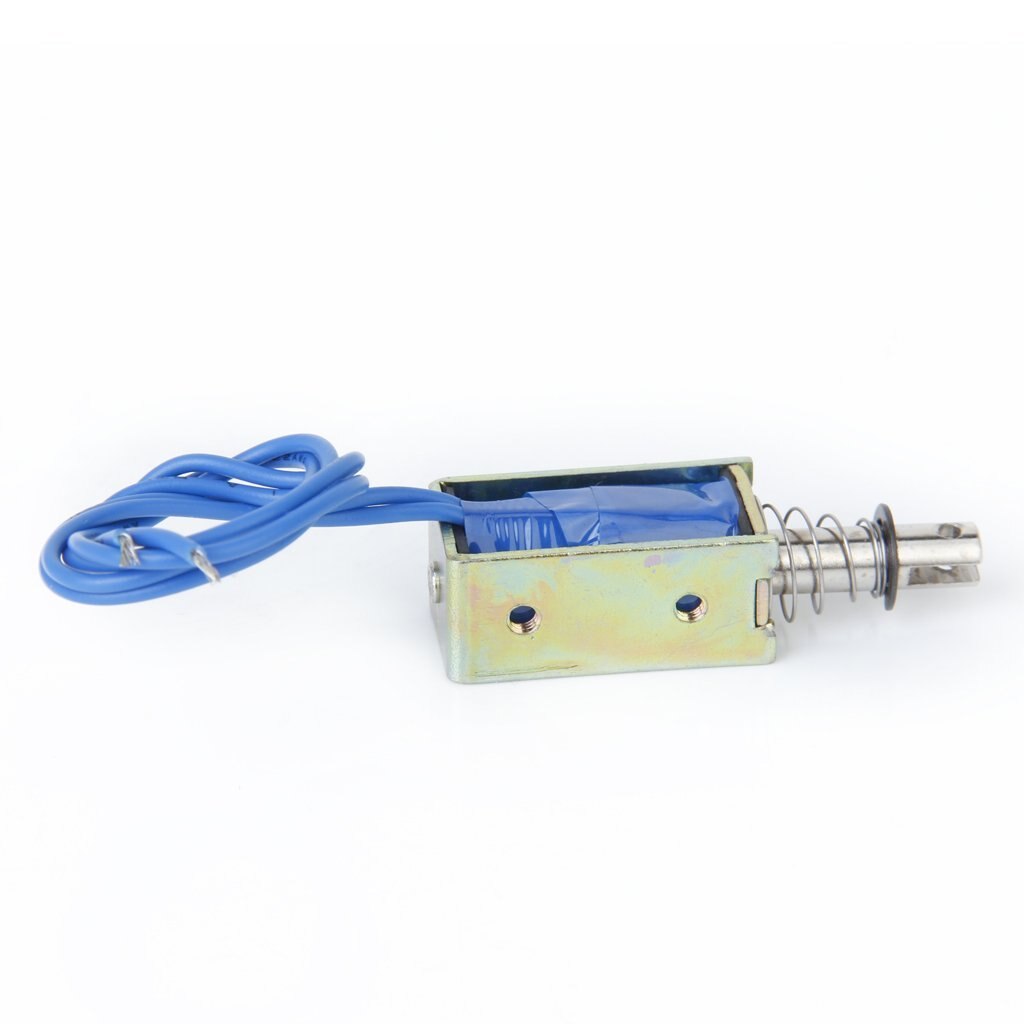

Solenoid 24V 0.8A 1564S-24A30

The Solenoid 24V 0.8A 1564S-24A30 is a DC solenoid actuator that turns electrical energy into a quick linear movement of its plunger. It is rated for 24 V and draws about 0.8 A, which suits 24 V automation systems and industrial-style projects that need a firm, fast action for latches, locks, pushers and ejectors, while keeping the current lower than a 12 V unit of similar power.

Solenoid 24V 0.8A 1564S-24A30 Specifications

• Model: 1564S-24A30
• Rated voltage: 24 V DC
• Rated current: 0.8 A
• Power: about 19 W (24 V × 0.8 A)
• Coil resistance: about 30 Ω (24 V ÷ 0.8 A)
• Type: electromagnetic solenoid with a moving plunger

Solenoid 24V 0.8A 1564S-24A30 Applications

• Electric door, cabinet and drawer latches
• Pushers and ejectors in sorting and dispensing machines
• 24 V PLC and industrial automation projects
• Vending machine prototypes, test rigs and robotics

What's in the Box

• 1 × 24 V solenoid 1564S-24A30

Tip: Switch the solenoid with a relay or a MOSFET rated well above 0.8 A, and fit a flyback diode such as a 1N4007 across the coil to protect the switch. Use a 24 V supply of at least 1.5 A, and keep each activation short unless the solenoid is rated for continuous duty, because the coil heats up.
