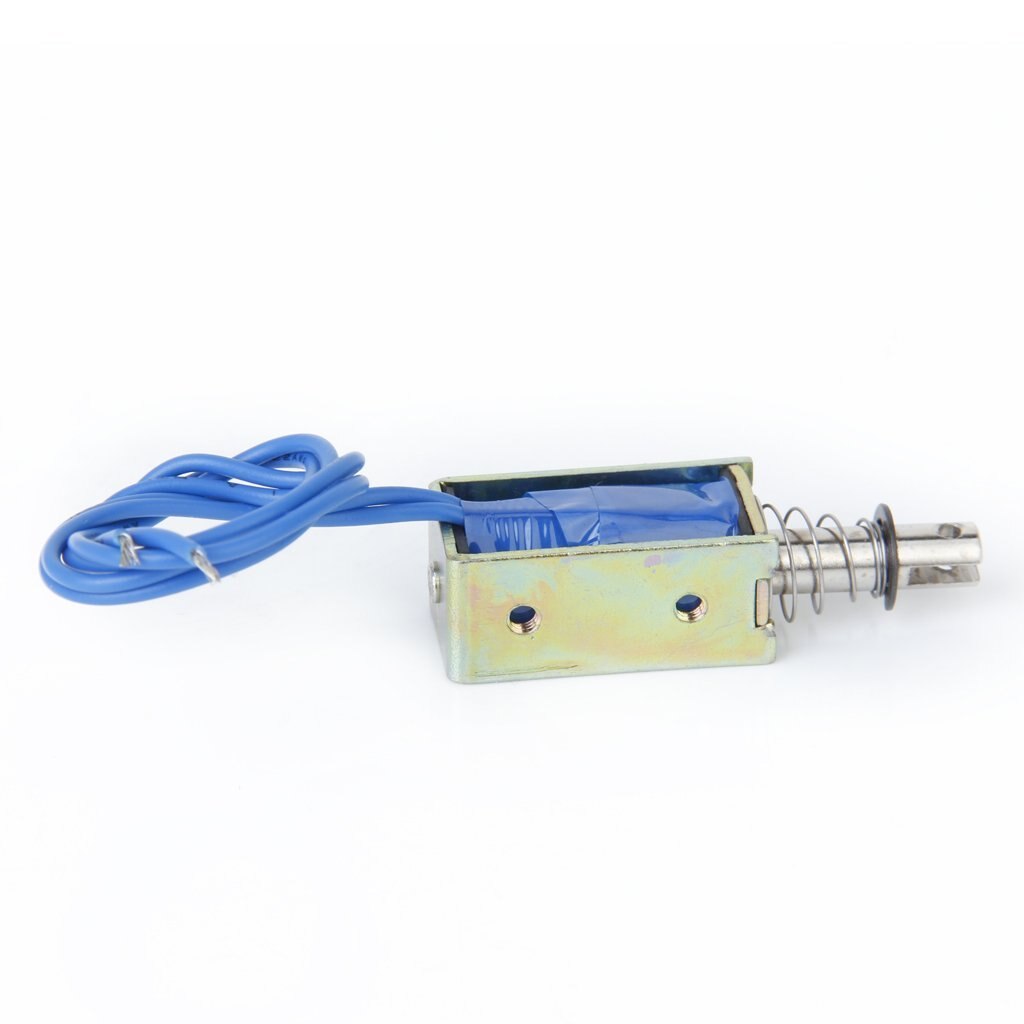

Solenoid 5V 0.83A 0420S-6

The Solenoid 5V 0.83A 0420S-6 is a small open-frame DC solenoid actuator that turns electrical energy into a short linear movement. When 5 V is applied, the coil draws about 0.83 A and its magnetic field moves the plunger, which can push or pull a latch, lever or button. It is a simple way to add mechanical action to Arduino, ESP32 and robotics projects.

Solenoid 5V 0.83A 0420S-6 Specifications

• Model: 0420S-6
• Rated voltage: 5 V DC
• Rated current: 0.83 A
• Power: about 4.2 W (5 V × 0.83 A)
• Coil resistance: about 6 Ω (5 V ÷ 0.83 A)
• Construction: open frame with a moving plunger

Solenoid 5V 0.83A 0420S-6 Applications

• Electronic latches for doors, drawers and cabinets
• Automatic button pressers and small pushers
• Dispensing and sorting mechanisms
• Robotics, kinetic art and percussion strikers

What's in the Box

• 1 × 5 V solenoid 0420S-6

Tip: An Arduino pin cannot supply 0.83 A, so switch the solenoid with a logic-level MOSFET such as the IRL540 or a TIP120 transistor, and fit a 1N4007 diode across the coil to absorb the voltage spike at turn-off. Use a 5 V supply rated for at least 1 A, and avoid keeping it energised for long periods because the coil heats up.
