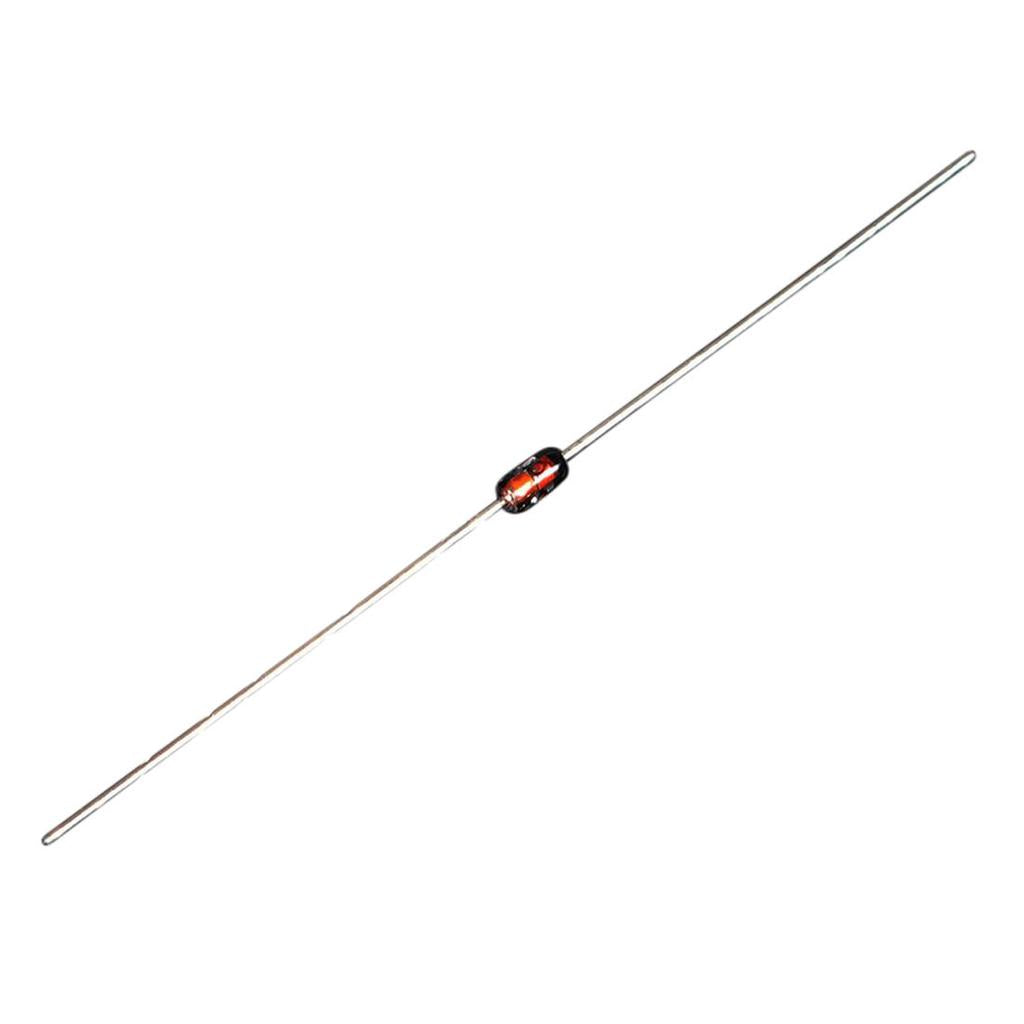

ST4148 1N4148 10PCS 75V

The ST4148 1N4148 is a fast small-signal switching diode of the industry-standard 1N4148 type, sold in a pack of 10. With a 75 V reverse voltage rating and a very fast 4 ns recovery time, it is the go-to diode for logic circuits, signal rectification, flyback protection on small relays and keeping current flowing in one direction only in Arduino projects.

ST4148 1N4148 Specifications

• Type: small-signal switching diode (1N4148)
• Reverse voltage: 75 V
• Forward current: about 150–200 mA average, depending on the maker
• Forward voltage: 1 V max at 10 mA
• Reverse recovery time: 4 ns
• Package: DO-35 glass, axial leads
• Pack size: 10 pieces

ST4148 1N4148 Applications

• Diode logic gates and signal steering
• Fast switching and high-frequency rectification
• Flyback protection for small relays and coils
• Keyboard and button matrices (anti-ghosting)
• Reverse-polarity protection for low-current circuits

What's in the Box

• 10 × 1N4148 switching diodes

Tip: The black band marks the cathode. The 1N4148 is made for small currents; for power supplies or motors drawing more than about 200 mA, use a rectifier diode such as the 1N4007 or a Schottky diode instead.
