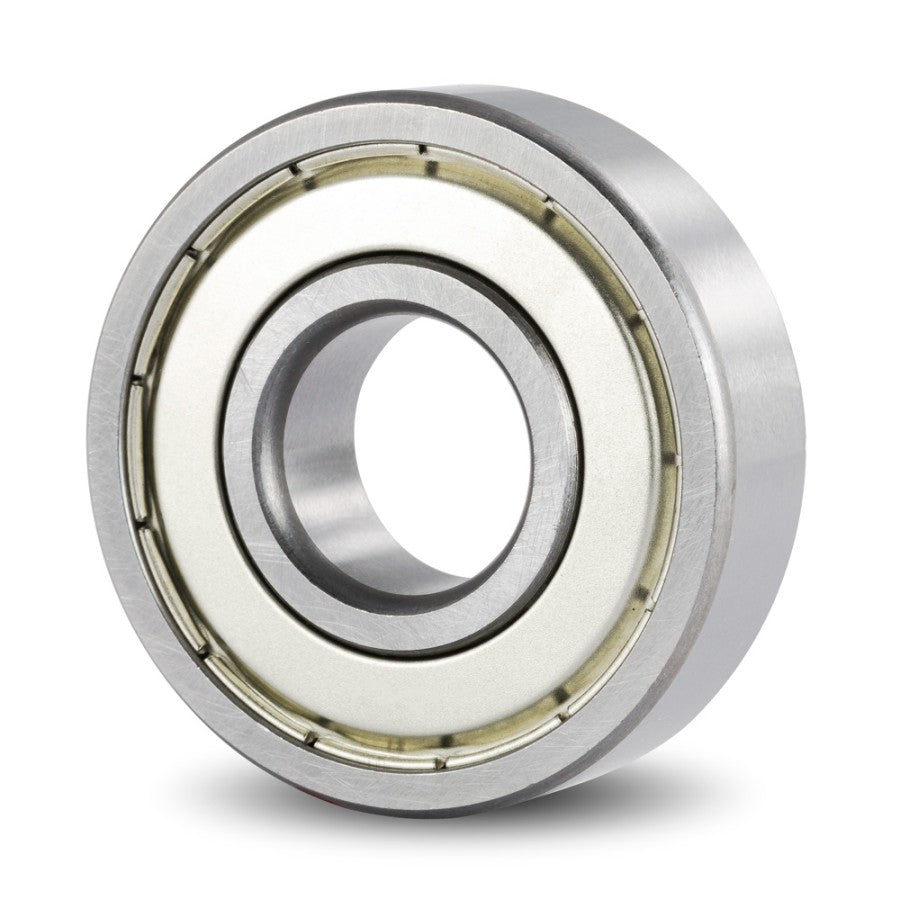

Steel Ball Bearing 626ZZ 6x19x6

The Steel Ball Bearing 626ZZ 6x19x6 is a deep groove ball bearing with a 6 mm bore, a 19 mm outer diameter and a 6 mm width. The ZZ suffix means it has metal shields on both sides that keep dust out and the grease in, so it is ready to fit without extra lubrication. It is a common size for 3D printer idlers, CNC machines, robots, RC models and small motors.

Steel Ball Bearing 626ZZ 6x19x6 Specifications

• Bearing type: deep groove ball bearing, 626 size
• Bore (inner diameter): 6 mm
• Outer diameter: 19 mm
• Width: 6 mm
• Shields: ZZ, metal shields on both sides
• Material: steel
• Lubrication: pre-greased and shielded

Steel Ball Bearing 626ZZ 6x19x6 Applications

• Idler pulleys and belt tensioners in 3D printers and CNC routers
• Robot wheels, joints and turntables
• RC car and model gearboxes
• Small motors, fans and spindles
• Replacement bearings for tools and appliances

What's in the Box

• 1 × 626ZZ ball bearing

Tip: When pressing the bearing in, push only on the ring being fitted (the outer ring into a housing, the inner ring onto a shaft) and never hammer on the shields. A 6 mm shaft or M6 bolt fits the bore; add a washer or spacer so fixed parts touch only the inner ring.
