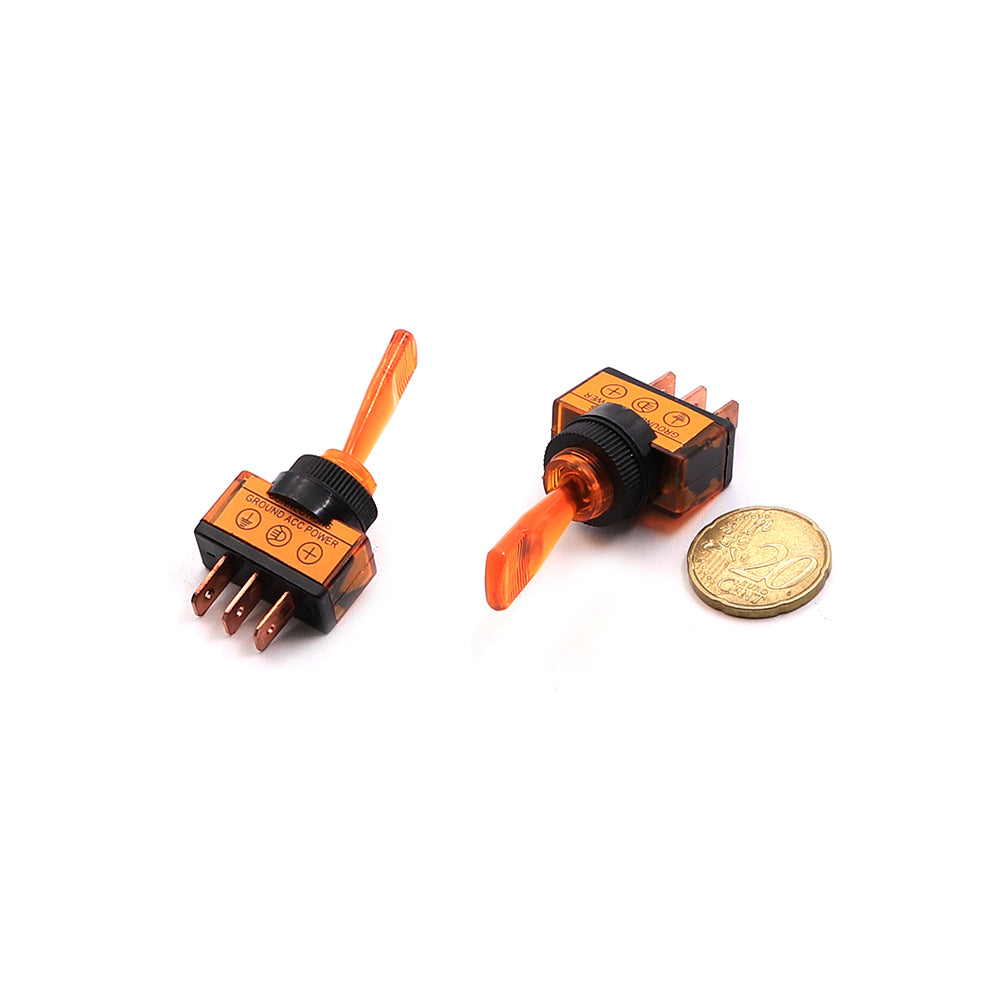

Switch Toggle 3-Pin SPDT 24x14mm ON-OFF Orange Lamp

The Switch Toggle 3-Pin with orange lamp is a 24 × 14 mm ON-OFF switch with a built-in orange light to indicate the on state. The lamp makes the switch position easy to see from a distance or in a dark room, so it suits control panels, project boxes and DIY equipment where you want a clear power indicator without adding a separate pilot light.

Switch Toggle 3-Pin Specifications

• Type: illuminated switch with built-in lamp
• Positions: ON-OFF, maintained
• Pins: 3 (switch terminals plus the lamp connection)
• Size: 24 × 14 mm
• Lamp colour: orange

Switch Toggle 3-Pin Applications

• Main power switches with an on indicator for project boxes and equipment
• Control panels for workshop tools, test rigs and machines
• Switching lights, fans and pumps in DIY builds, within the switch rating
• Robotics, models and school projects that need a visible power state

What's in the Box

• 1 × 3-pin ON-OFF switch with orange lamp, 24 × 14 mm

Tip: On most 3-pin lighted switches one pin is the supply in, one is the output to the load and the third is the lamp ground, which must go to negative or neutral for the lamp to light. Check the pin markings and the lamp voltage printed on the switch before wiring, because a lamp made for 12 V will fail on mains and a mains neon lamp will not light on 12 V.
