Switch Toggle 3-Pin SPDT ON-OFF-ON 13x7mm Blue

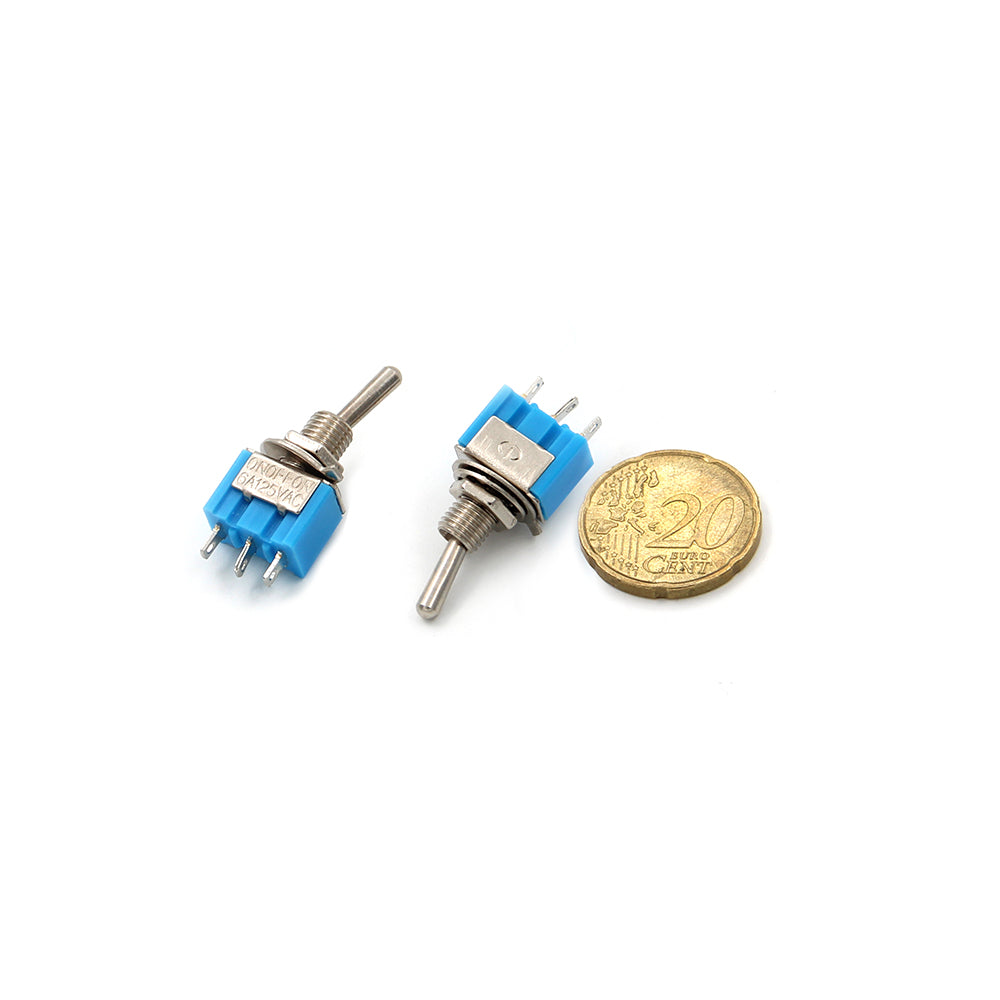

The Switch Toggle 3-Pin SPDT ON-OFF-ON is a blue miniature toggle switch with a 13 × 7 mm body and three positions. With the lever in the centre the circuit is off; flip it to either side and the middle (common) pin connects to one of the two outer pins. It is a simple way to choose between two circuits, modes or power sources with a clear off position in between.

Switch Toggle 3-Pin SPDT ON-OFF-ON Specifications

• Type: miniature toggle switch
• Contact form: SPDT (single pole, double throw)
• Positions: ON-OFF-ON, maintained, with centre off
• Pins: 3 (common in the middle)
• Body size: 13 × 7 mm
• Colour: blue

Switch Toggle 3-Pin SPDT ON-OFF-ON Applications

• Selecting between two modes, circuits or power sources
• Three-state inputs for Arduino and ESP32 projects
• Control panels for robots, RC models and test rigs
• Switching between two LEDs, sensors or outputs

What's in the Box

• 1 × SPDT ON-OFF-ON toggle switch, blue

Tip: To read it with an Arduino, connect the middle pin to GND and each outer pin to a digital input set to INPUT_PULLUP. One input reads LOW in each side position, and both read HIGH when the lever is in the centre.
