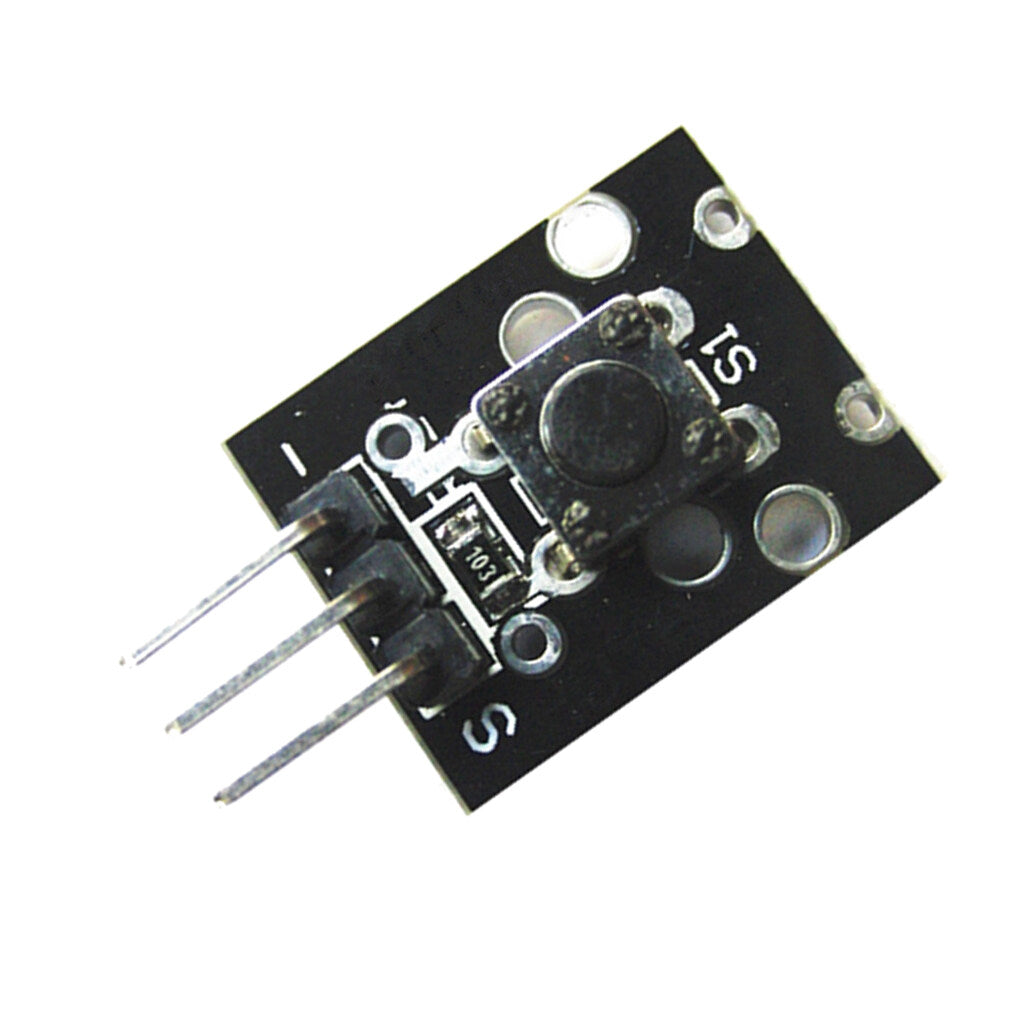

Tactile Switch Module

The Tactile Switch Module is a small push button mounted on a breakout board with header pins, so you can add a button to an Arduino, ESP32 or Raspberry Pi project with a few jumper wires. Press the button and you feel a light click as the contacts close; release it and they open again. It is a simple way to add start, reset, menu or mode buttons without fitting a loose switch on a breadboard.

Tactile Switch Module Specifications

• Switch type: momentary tactile push button
• Action: contacts close while pressed and open when released
• Output: digital signal to a microcontroller input pin
• Format: breakout board with header pins for jumper wires

Tactile Switch Module Applications

• Start, stop and reset buttons in Arduino projects
• Menu navigation with an LCD or OLED display
• Game controllers and quiz buzzers
• Robot mode selection
• Learning digital inputs and debouncing in class

What's in the Box

• 1 × tactile switch module

Tip: Check the pin labels on the board before wiring. If the button reads randomly, enable the internal pull-up with pinMode(pin, INPUT_PULLUP) and add a short software debounce of about 20–50 ms.
