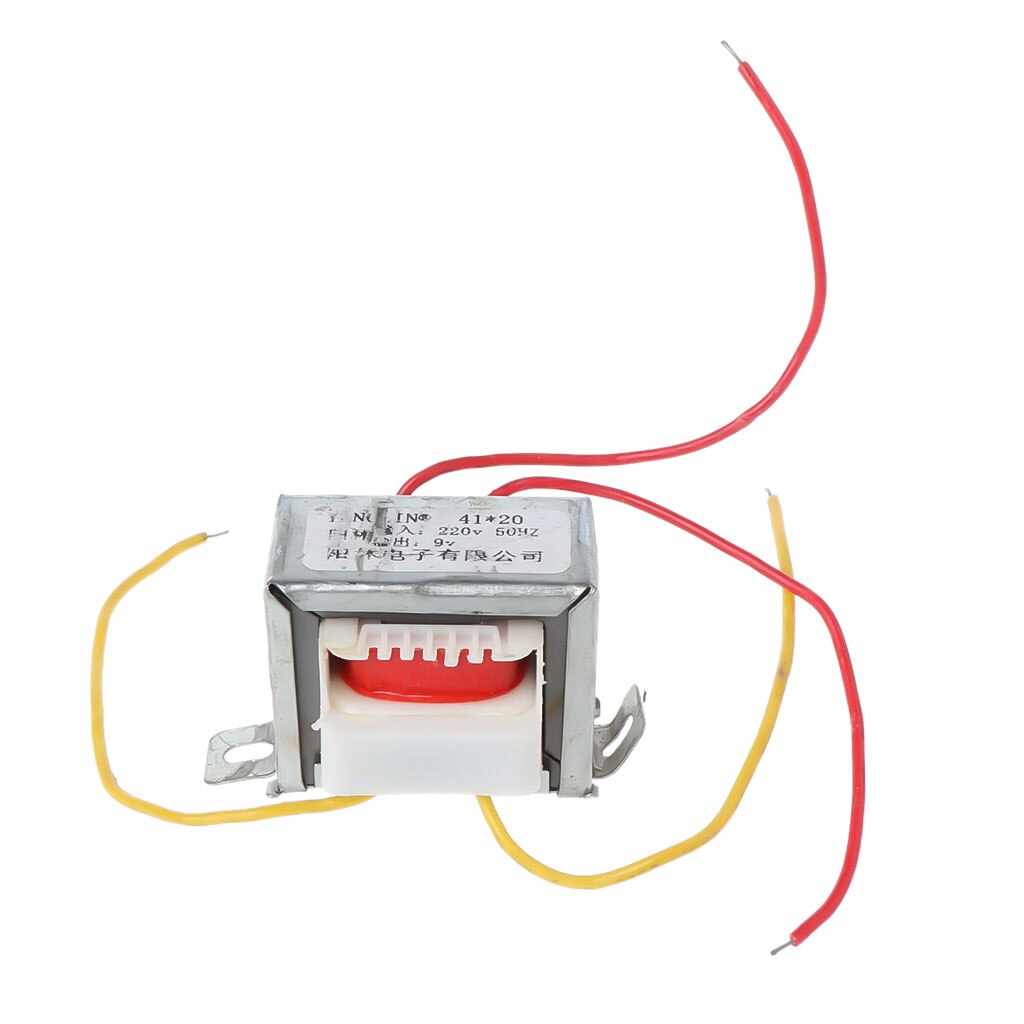

Transformer 9-0-9V 40VA

The Transformer 9-0-9V 40VA is a step-down transformer with a centre-tapped secondary winding that gives 9 V AC on each side of the centre tap, or 18 V AC across the two outer wires. Its 40 VA rating makes it a solid base for linear power supplies, audio amplifier projects and dual-rail circuits that need up to about 2 A.

Transformer 9-0-9V 40VA Specifications

• Secondary voltage: 9-0-9 V AC, centre-tapped (18 V AC end to end)
• Power rating: 40 VA
• Secondary current: about 2.2 A across the full 18 V winding (40 VA ÷ 18 V)
• Rectified output: roughly 12 V DC per half after a rectifier and smoothing capacitor, higher with no load
• Operation: AC only; a transformer does not work from a DC source

Transformer 9-0-9V 40VA Applications

• Linear power supplies with 7805, 7809 or LM317 regulators
• Dual-rail (±) supplies for op-amp and audio preamplifier circuits
• Power supplies for small audio amplifier boards
• Replacing a 9-0-9 V transformer when repairing electronic equipment
• Teaching rectification, filtering and regulation in electronics labs

What's in the Box

• 1 × 9-0-9 V 40 VA transformer

Tip: Check that the primary rating on the label matches your mains supply (220–230 V in Lebanon) and insulate every mains connection before switching on. For a full-wave supply, use the centre tap as 0 V with one diode on each outer wire, and plan for less DC current than the AC rating.
