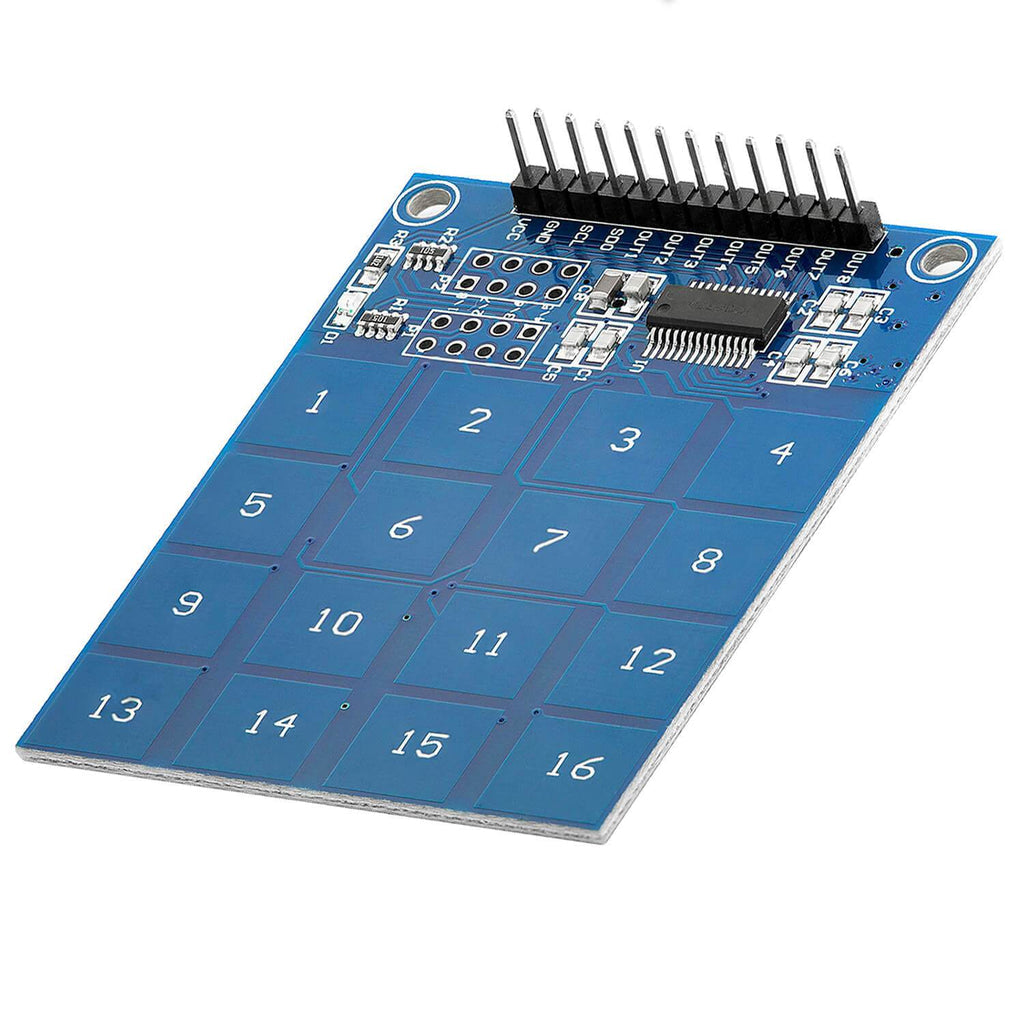

TTP229 16-way Capacitive Touch Switch Module

The TTP229 16-way Capacitive Touch Switch module is a touch keypad built around the TTP229 capacitive touch IC. Instead of mechanical buttons it has 16 touch pads that react to a finger, so there are no moving parts to wear out. It connects to an Arduino, ESP32 or other microcontroller with only two signal wires plus power.

TTP229 16-way Capacitive Touch Switch Specifications

• Controller: TTP229 capacitive touch IC
• Keys: 16 touch pads (the IC also supports an 8-key mode)
• Supply voltage: 2.4–5.5 V, works with 3.3 V and 5 V boards
• Interface: 2-wire serial (SCL clock and SDO data); this is not standard I2C
• Options: settings such as 8-key or 16-key mode are selected with configuration pads on the board

TTP229 16-way Capacitive Touch Switch Applications

• Touch keypads for door locks and password entry
• Menu and control panels for Arduino and ESP32 projects
• Simple musical instruments with 16 notes
• Replacing mechanical buttons behind a sealed front panel
• STEM, robotics and electronics classes

What's in the Box

• 1 × TTP229 16-key capacitive touch module

Tip: Many boards start in 8-key mode, so bridge the 16-key option pad (often marked TP2) before use, then read the keys with a TTP229 library. The IC calibrates itself at power-up, so keep fingers off the pads while the board starts.
