USB-6000 Multifunction I/O Device National Instruments

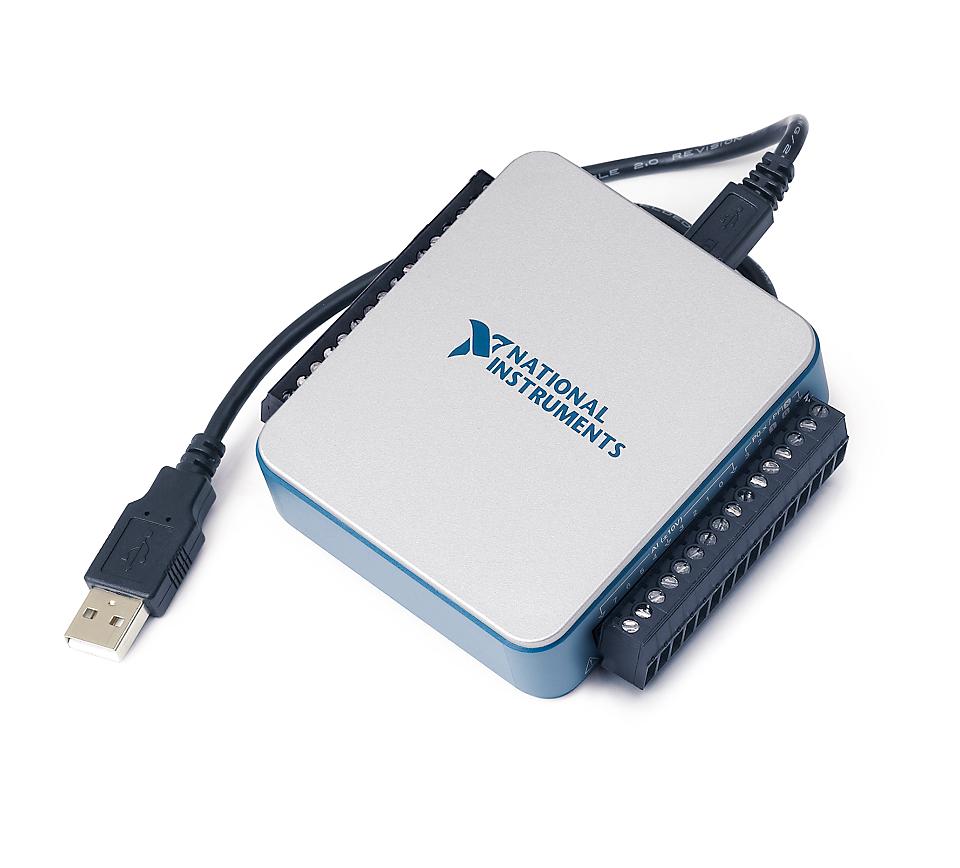

The USB-6000 Multifunction I/O Device from National Instruments (NI) is a low-cost, bus-powered data acquisition (DAQ) device that connects to a computer over USB. It reads up to 8 analog voltages at up to 10 kS/s with 12-bit resolution, and adds 4 digital I/O lines and a 32-bit counter. It is a practical choice for student labs, basic measurements and data logging with LabVIEW or other software through the NI-DAQmx driver.

USB-6000 Multifunction I/O Device Specifications

• Analog inputs: 8 single-ended channels
• Resolution: 12 bits
• Maximum sample rate: 10 kS/s
• Input range: ±10 V
• Analog outputs: none
• Digital I/O: 4 bidirectional lines, 5 V logic
• Counter: 1 × 32-bit counter
• Bus: USB 2.0, bus-powered (no external supply needed)
• Signal connection: screw terminals
• Driver: NI-DAQmx
• Operating temperature: 0–40 °C

USB-6000 Multifunction I/O Device Applications

• Measurement and instrumentation labs at schools and universities
• Logging voltages and sensor outputs on a PC
• LabVIEW learning and student projects
• Simple test benches with digital inputs, outputs and event counting

What's in the Box

• 1 × NI USB-6000 multifunction I/O device

Tip: Install the NI-DAQmx driver before plugging in the device, then test the channels in NI MAX. The inputs are single-ended, so connect your signal ground to a GND terminal on the device and keep every input within ±10 V.
