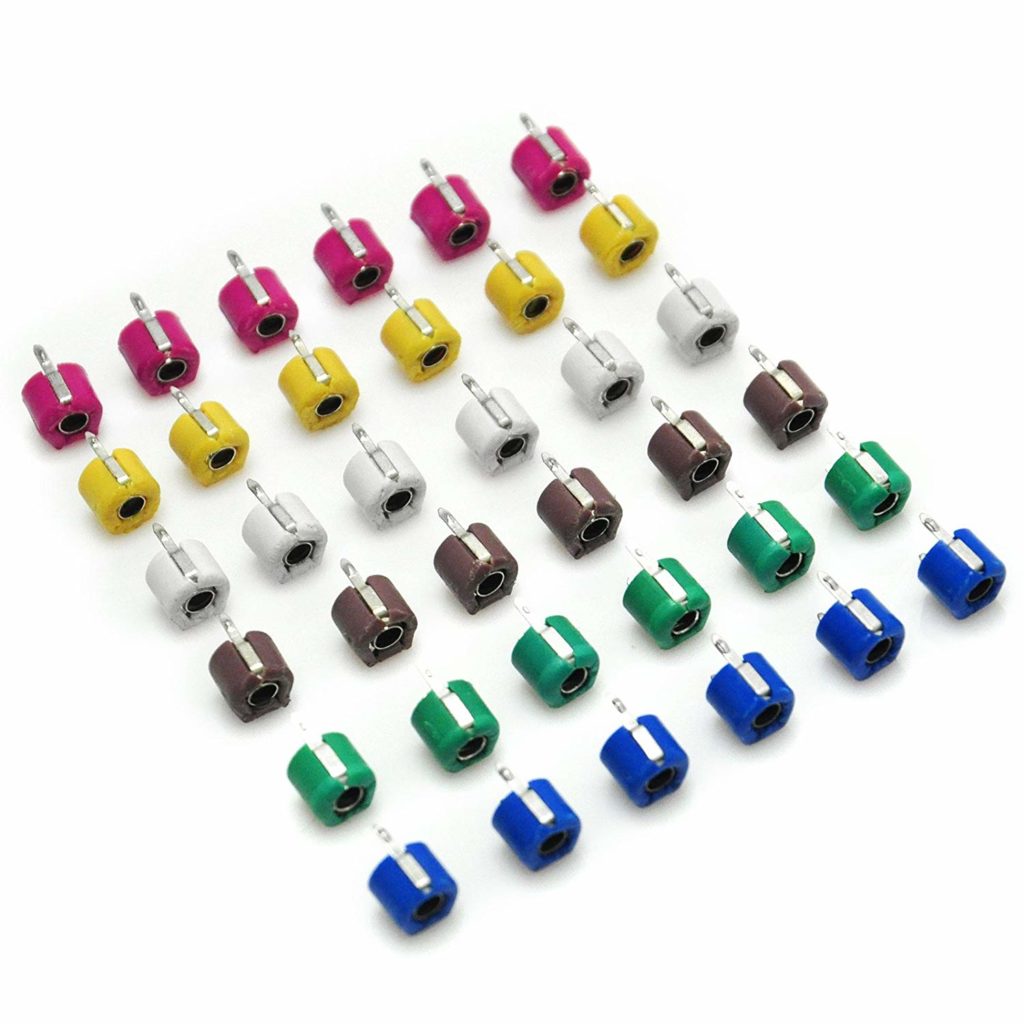

Variable Capacitor 6mm 120pF

The Variable Capacitor 6mm 120pF is a compact 6 mm trimmer capacitor whose value is set by turning a small adjustment screw, up to a maximum of 120 pF. Its relatively wide range makes it useful for trimming LC tank circuits, oscillators and filters at lower radio frequencies, and for aligning radios after assembly or repair.

Variable Capacitor 6mm 120pF Specifications

• Type: trimmer (variable) capacitor, screwdriver adjusted
• Maximum capacitance: 120 pF
• Size: 6 mm
• Adjustment: rotary; set once during calibration, then left in place
• Polarity: non-polarised

Variable Capacitor 6mm 120pF Applications

• Trimming LC resonant circuits and RF filters
• Padding and alignment in AM and shortwave radio receivers
• Fine-tuning oscillator frequency
• Antenna matching networks
• Radio kits, ham radio projects and electronics education

What's in the Box

• 1 × 6 mm 120 pF variable capacitor

Tip: Adjust it with a plastic or ceramic trimming tool rather than a metal screwdriver, because metal and fingers add capacitance and shift the setting. Make small turns while watching the frequency or signal level, and connect the adjustment-screw side to ground where the layout allows.
