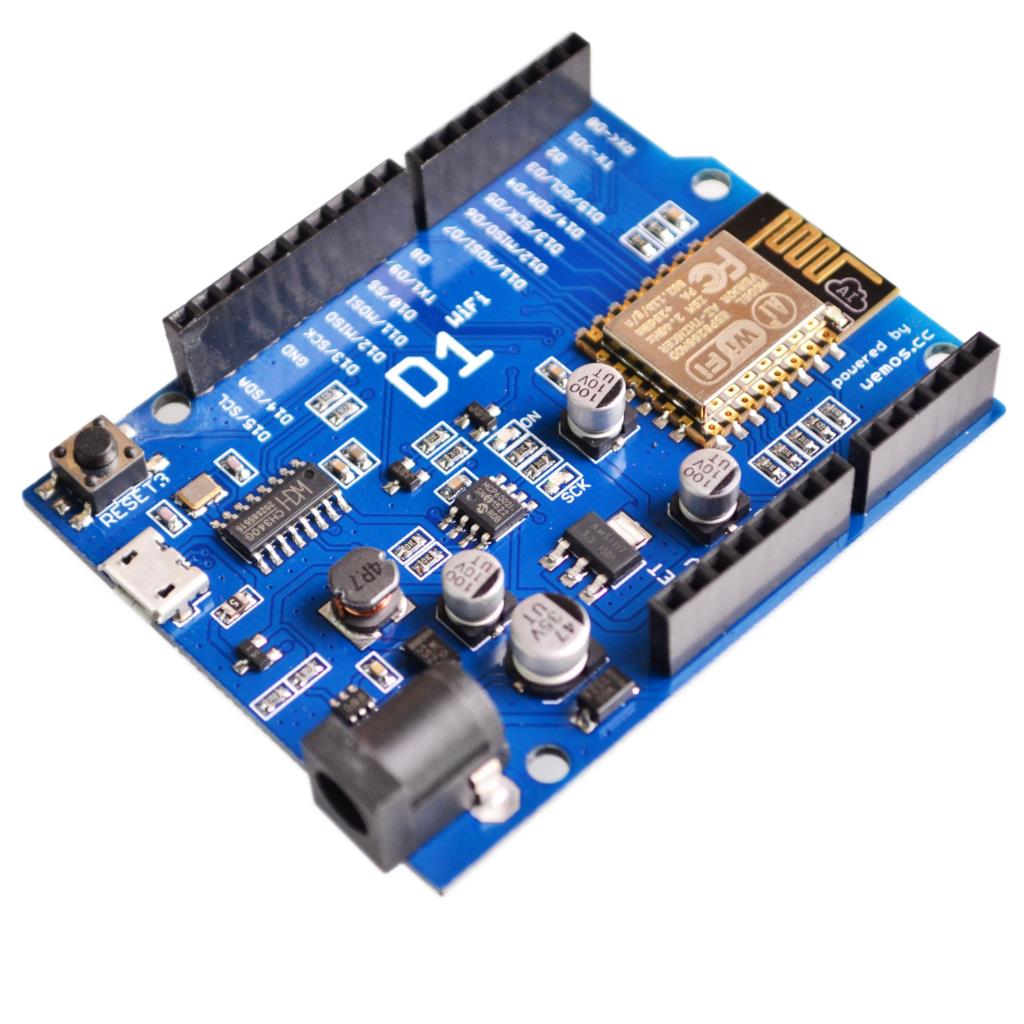

Wemos D1 ESP8266 Chip

The Wemos D1 ESP8266 is a Wi-Fi development board built around the ESP8266 chip, made in the same size and header layout as an Arduino Uno. It programs over micro USB with the Arduino IDE or MicroPython, so you can move Uno-style projects onto Wi-Fi and build web servers, IoT sensors and smart home controllers with familiar tools.

Wemos D1 ESP8266 Specifications

• Microcontroller: ESP8266EX, 32-bit, 80/160 MHz
• Wi-Fi: 802.11 b/g/n, 2.4 GHz
• Flash memory: 4 MB
• Digital I/O pins: 11, with PWM, I2C and interrupt support
• Analog input: 1 (A0)
• Logic level: 3.3 V
• Power and programming: micro USB, or the DC power jack
• Form factor: Arduino Uno size

Wemos D1 ESP8266 Applications

• Wi-Fi sensors that send data to Google Sheets, MQTT or a web dashboard
• Smart relays, lighting and home automation
• Small web servers and IoT controllers
• Upgrading Uno-style school projects to Wi-Fi

What's in the Box

• 1 × Wemos D1 ESP8266 board

Tip: Although the board looks like an Uno, its I/O pins work at 3.3 V, so check that shields and sensors are 3.3 V compatible or use level shifting. In the Arduino IDE, install the ESP8266 board package and select 'LOLIN(WEMOS) D1 R2 & mini' as the board.
