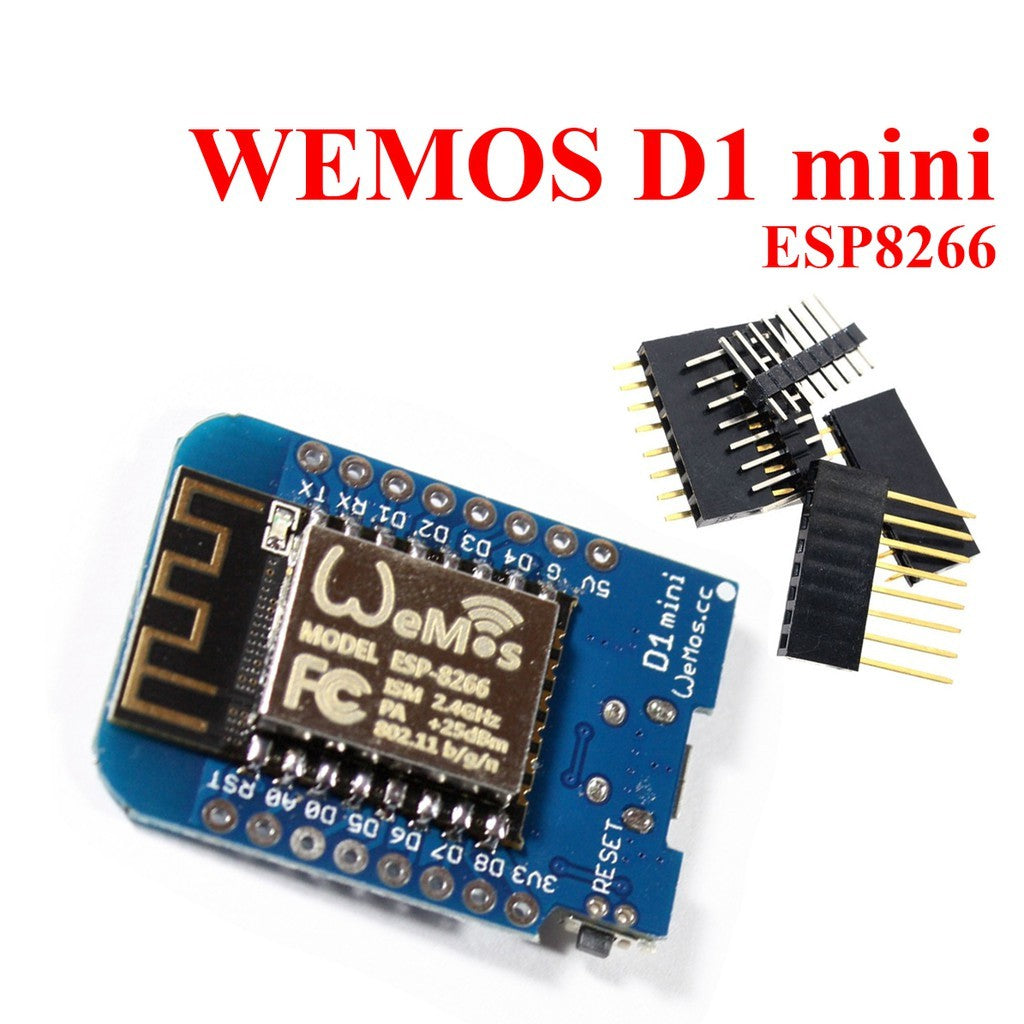

Wemos D1 Mini ESP8266 Chip

The Wemos D1 Mini ESP8266 is a small Wi-Fi development board built around the ESP8266 chip. It has a micro USB port for power and programming, works with the Arduino IDE and MicroPython, and is small enough to fit inside sensor boxes, smart switches and other IoT projects.

Wemos D1 Mini ESP8266 Specifications

• Microcontroller: ESP8266EX, 32-bit, 80/160 MHz
• Wi-Fi: 802.11 b/g/n, 2.4 GHz
• Flash memory: 4 MB
• Digital I/O pins: 11, with PWM, I2C and interrupt support
• Analog input: 1 (A0)
• Logic level: 3.3 V
• Power and programming: micro USB (5 V) or the 5V pin
• Size: approx. 34 × 26 mm

Wemos D1 Mini ESP8266 Applications

• Wi-Fi sensors that send data to Google Sheets, MQTT or a web dashboard
• Smart relays, plugs and home automation
• Small web servers and IoT controllers
• Learning ESP8266 programming in the Arduino IDE

What's in the Box

• 1 × Wemos D1 Mini ESP8266 board

Tip: The I/O pins work at 3.3 V, so use a level shifter or voltage divider with 5 V sensors. In the Arduino IDE, install the ESP8266 board package and select 'LOLIN(WEMOS) D1 R2 & mini' as the board.
