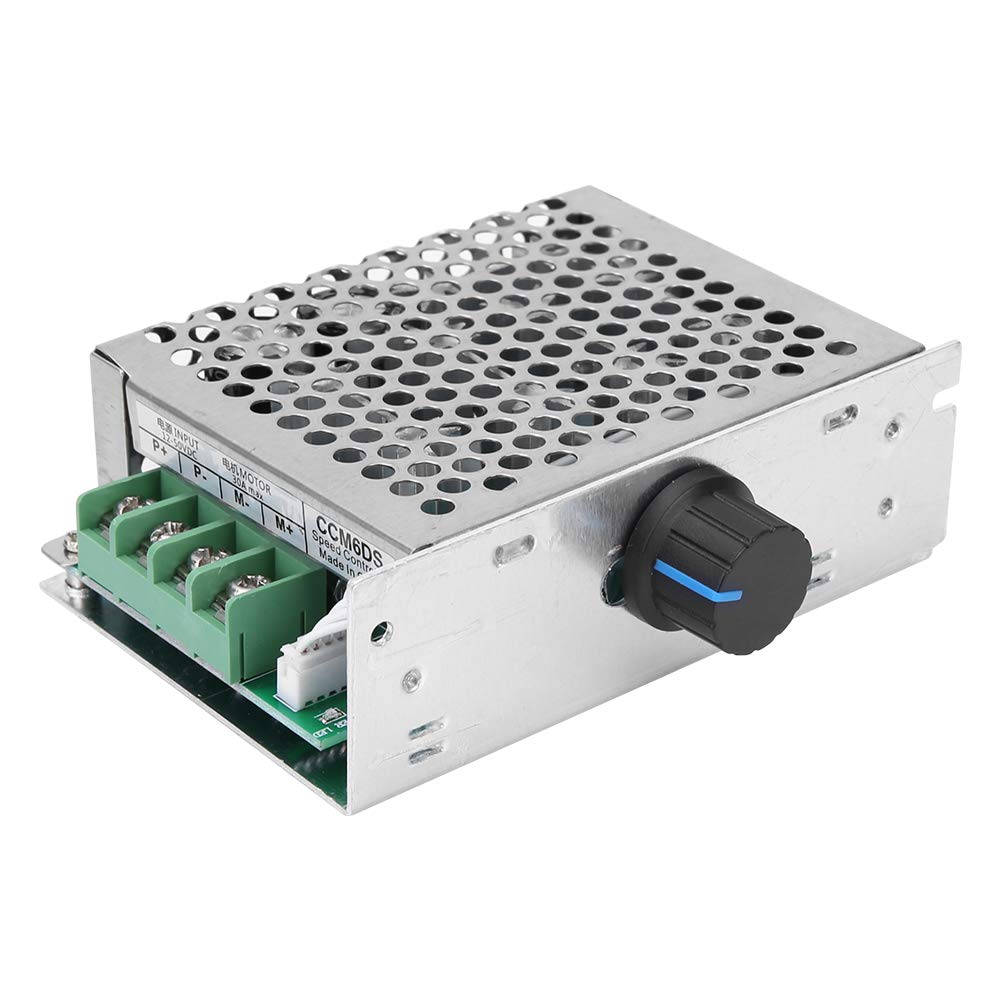

1500W DC 12-50V 30A Motor Speed Controller Electric PWM Speed Control Regulator with Reversible Switch

The DC 12-50V 30A Motor Speed Controller is a PWM (pulse-width modulation) speed regulator rated up to 1500 W, with a reversible switch for changing the motor's direction. It works from a DC supply between 12 V and 50 V and handles currents up to 30 A, which suits large brushed DC motors in workshop machines, conveyors, carts, winches and pumps.

DC 12-50V 30A Motor Speed Controller Specifications

• Supply voltage: DC 12–50 V
• Maximum current: 30 A
• Maximum power: 1500 W
• Control method: PWM speed regulation
• Direction: reversible switch for forward and reverse
• Motor type: brushed DC motors (two-wire)

DC 12-50V 30A Motor Speed Controller Applications

• Speed control for DC motors on small lathes, drills and grinders
• Conveyor belts and feeders
• Electric carts, winches and lifting mechanisms
• Large DC fans and pumps
• Robotics and automation test benches

What's in the Box

• 1 × 1500 W DC motor speed controller with reversible switch

Tip: Only flip the reversible switch when the motor has stopped, because reversing a spinning motor causes a large current surge. Use thick wires and a fuse sized for your motor's current, and keep the controller well ventilated when running near its 30 A limit.
