250V 30mm 1.5A

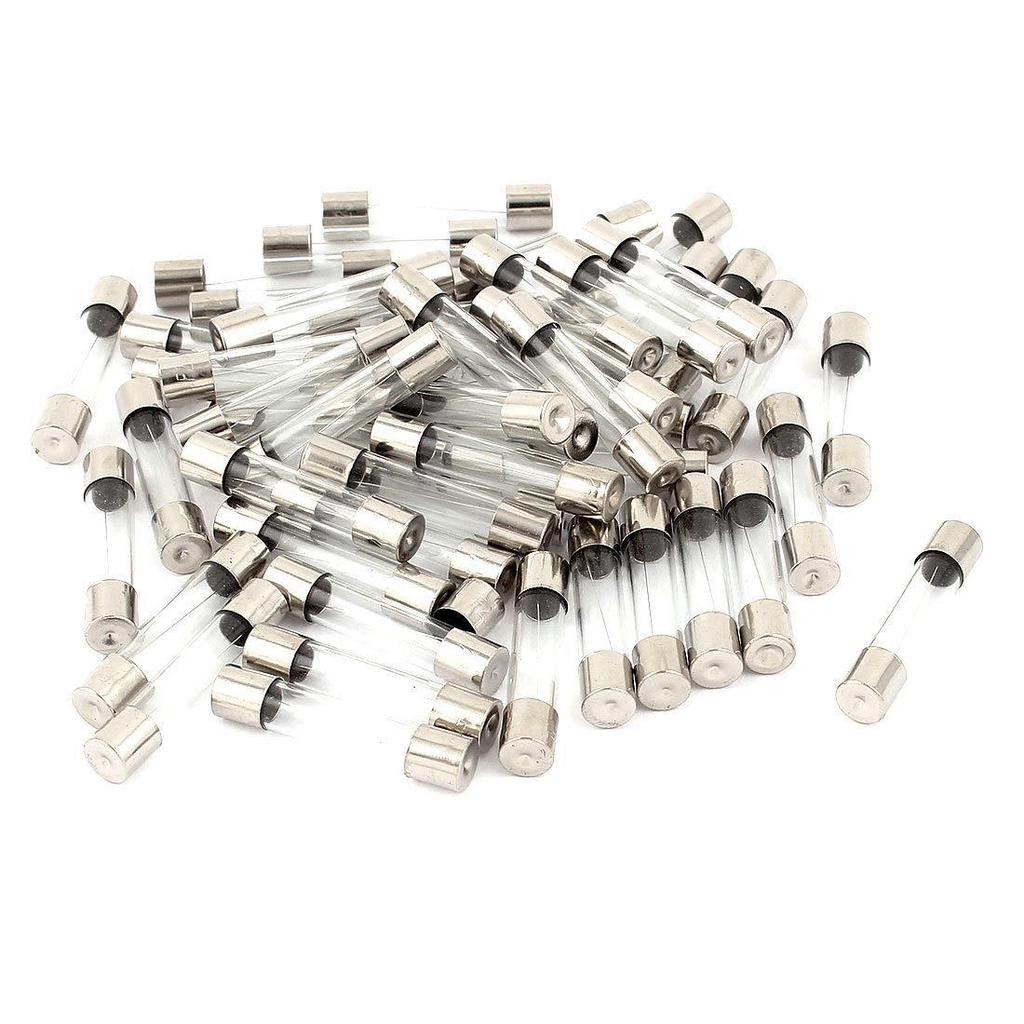

The 250V 30mm 1.5A fuse is a 30 mm long cartridge fuse rated for 1.5 A at up to 250 V. It sits in a fuse holder in series with the supply; if the current rises above its rating, the element inside melts and cuts the circuit, protecting the device and its wiring from overloads and short circuits. The 250 V rating covers 220–230 V mains equipment as well as low-voltage DC circuits.

250V 30mm 1.5A Fuse Specifications

• Current rating: 1.5 A
• Voltage rating: 250 V maximum
• Length: 30 mm
• Type: cartridge fuse for clip, panel or inline fuse holders
• Function: one-time overcurrent and short-circuit protection, replace after it blows

250V 30mm 1.5A Fuse Applications

• Mains protection for small transformers and power adapters
• Battery chargers, audio preamps and small amplifiers
• Small appliances, fans and lighting fixtures
• 12 V DC circuits for LED lighting and control boards
• Spare fuses for repair and maintenance work

What's in the Box

• 1 × 1.5 A 250 V 30 mm fuse

Tip: Unplug the device before changing the fuse and replace it with one of the same current rating, voltage rating, size and speed. On 230 V mains, 1.5 A corresponds to roughly 345 W, so a fuse that keeps blowing on a small device points to a fault that must be fixed first.
