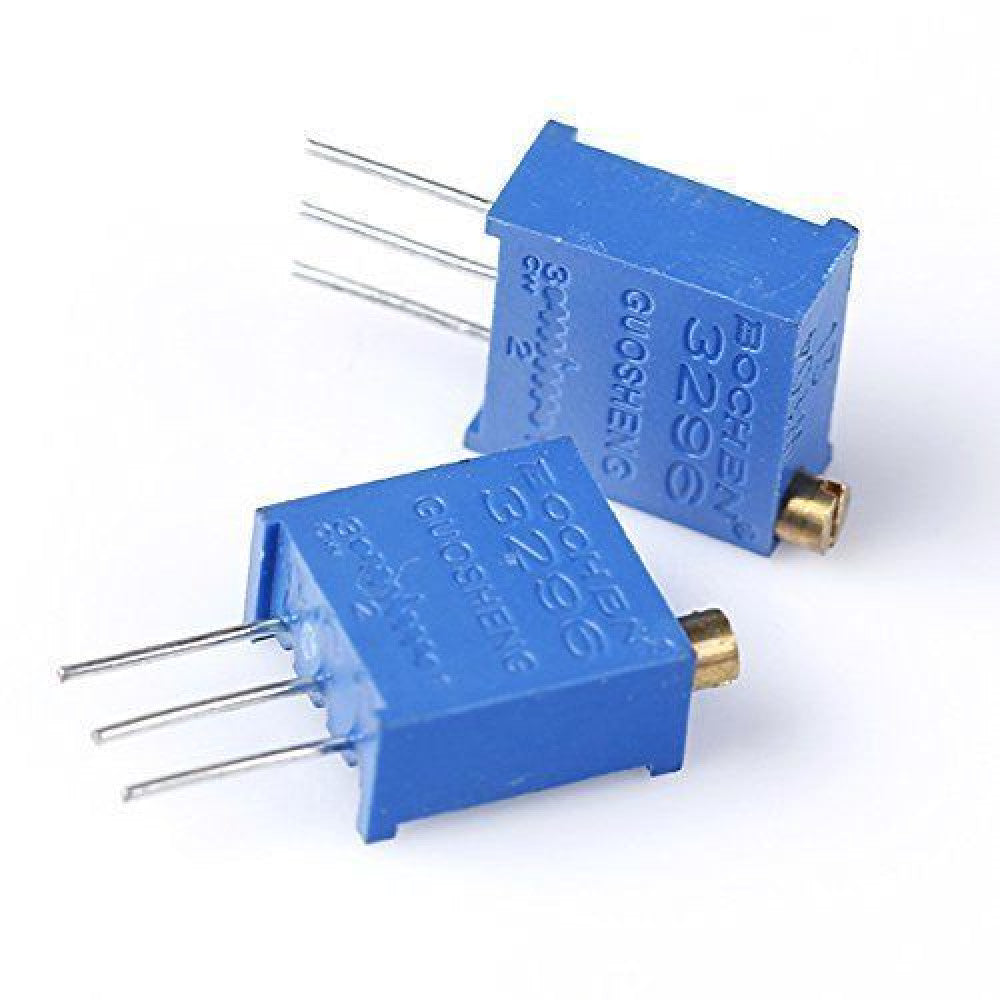

3296W 10Kohm 103 Trimpot Trimmer Potentiometer

The 3296W 10Kohm 103 Trimpot is a multi-turn trimmer potentiometer with a total resistance of 10 kΩ, marked with the code 103. It is adjusted with a small screwdriver using the screw on top, and its many turns let you set a value very precisely and keep it there. It is widely used to calibrate sensors, set reference voltages and adjust LCD contrast or amplifier gain on circuit boards.

3296W 10Kohm 103 Trimpot Specifications

• Series: 3296W square multi-turn trimmer, top adjustment
• Resistance: 10 kΩ (code 103 = 10 × 10³ Ω)
• Adjustment: multi-turn, 25 turns end to end
• Power rating: 0.5 W (standard for the 3296 series)
• Terminals: 3 pins, two track ends and the wiper
• Mounting: through-hole, for PCBs and perfboards

3296W 10Kohm 103 Trimpot Applications

• Calibrating sensor modules and analog inputs
• Setting the output of adjustable regulators such as the LM317
• Adjusting contrast on character LCDs
• Fine-tuning op-amp gain and offset
• Setting reference voltages for comparators

What's in the Box

• 1 × 3296W 10 kΩ trimmer potentiometer

Tip: Turn the screw gently: a multi-turn trimmer slips at the ends of its travel instead of stopping hard, so count turns rather than forcing it. Measure between the wiper and one end with a multimeter while adjusting to set an exact value.
