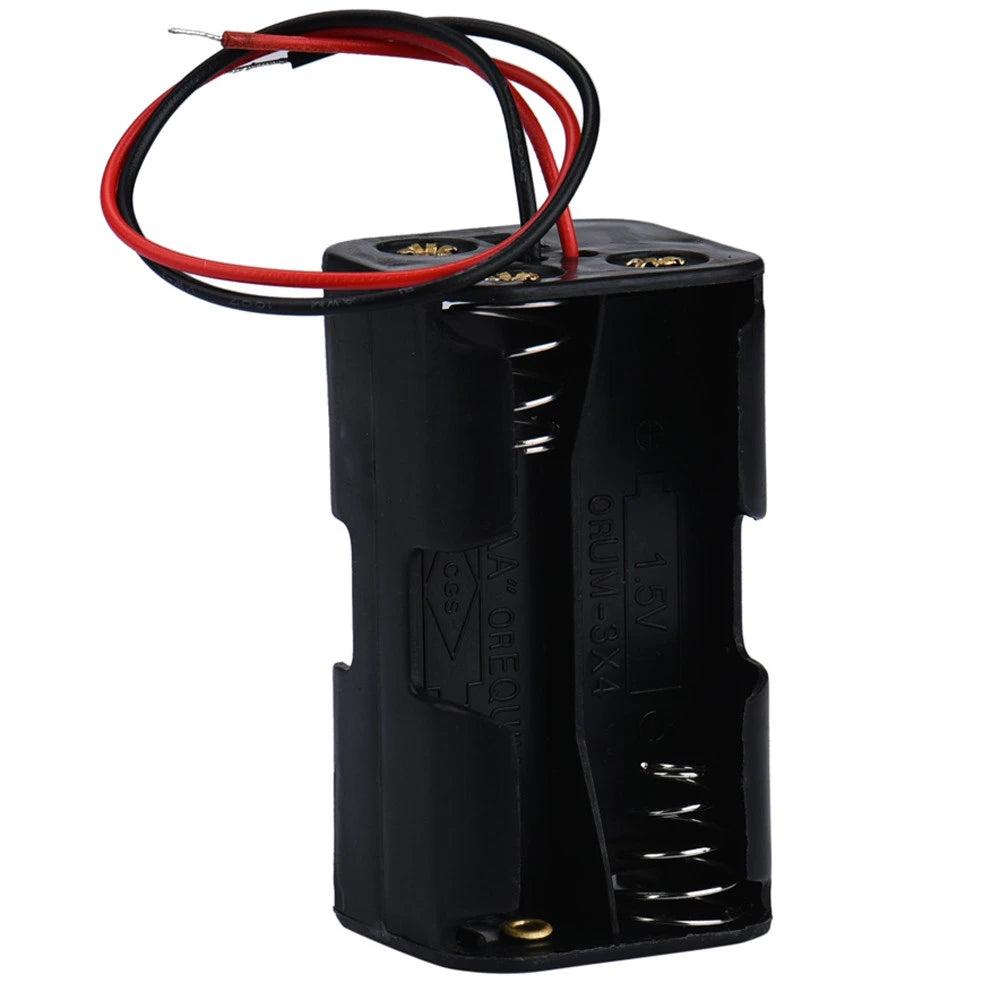

4 x AA Battery Holder Box (Back-to- Back)

The 4 x AA Battery Holder Box holds four AA cells in a compact back-to-back layout, with two cells on each side. The cells are connected in series to give about 6 V with alkaline batteries or about 4.8 V with NiMH rechargeables, a handy supply for small robots, motors, servos and toys.

4 x AA Battery Holder Box Specifications

• Capacity: 4 × AA cells
• Layout: back-to-back, 2 cells on each side
• Wiring: cells in series
• Output voltage: about 6 V (alkaline) or about 4.8 V (NiMH)
• Quantity: 1 holder

4 x AA Battery Holder Box Applications

• Powering 6 V DC motors and small robot chassis
• Servo motors that run from 4.8 V to 6 V
• Toys, LED lights and school projects
• Replacing a worn holder in battery-powered devices

What's in the Box

• 1 × 4 x AA back-to-back battery holder

Tip: Fit each cell following the + and − marks; one reversed cell lowers the voltage and drains the others. About 6 V is below the 7 V to 12 V recommended for the Arduino Uno barrel jack, so this pack works best for motors, servos and other 5 V to 6 V loads.
