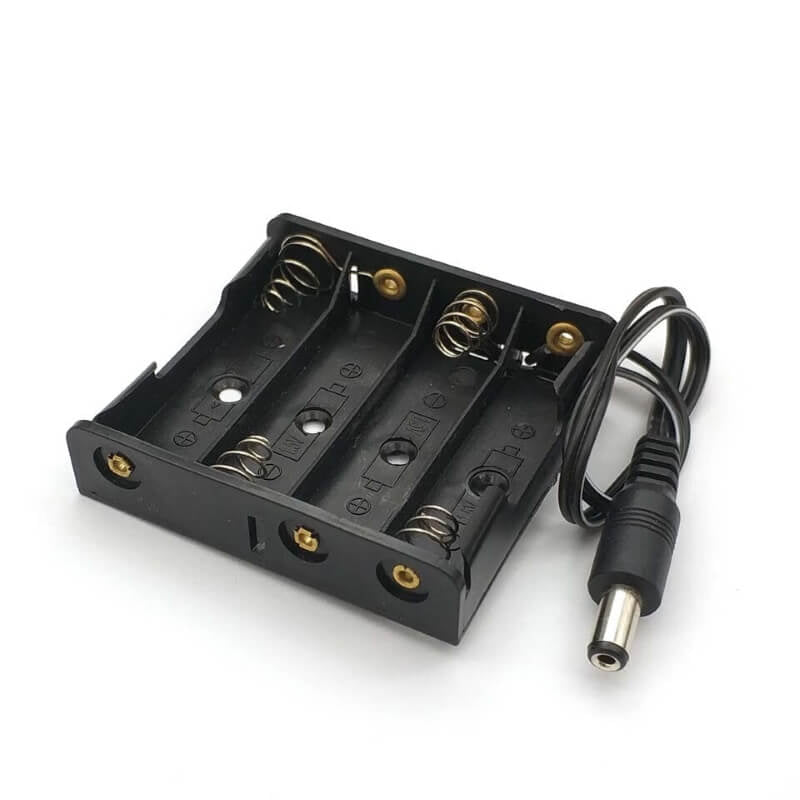

4xAA Battery Holder + DC Jack

The 4xAA Battery Holder + DC Jack holds four AA batteries in series and brings their output out on a lead with a DC jack connector. With alkaline cells it gives about 6 V, and with rechargeable NiMH cells about 4.8 V, making it a simple portable supply for small motors, robot car kits, servos and other battery-powered electronics projects.

4xAA Battery Holder + DC Jack Specifications

• Batteries: 4 × AA (not included)
• Connection: 4 cells in series
• Output with alkaline cells: about 6 V (4 × 1.5 V)
• Output with NiMH cells: about 4.8 V (4 × 1.2 V)
• Output connector: DC jack on the lead

4xAA Battery Holder + DC Jack Applications

• Powering small DC motors and robot car chassis
• Portable power for servo, LED and buzzer projects
• Battery supply for modules through a voltage regulator
• School science fairs and STEM kits
• Replacing a wall adapter when testing projects away from the bench

What's in the Box

• 1 × 4xAA battery holder with DC jack lead (batteries not included)

Tip: Insert the batteries with the flat negative end against the spring. For an Arduino Uno barrel jack, 6 V is below the recommended 7–12 V input, so use a 6 × AA holder there, or power 5 V boards through a suitable regulator.
