40Pin 2.54mm Single Row Round Female Pin Header (1pcs)

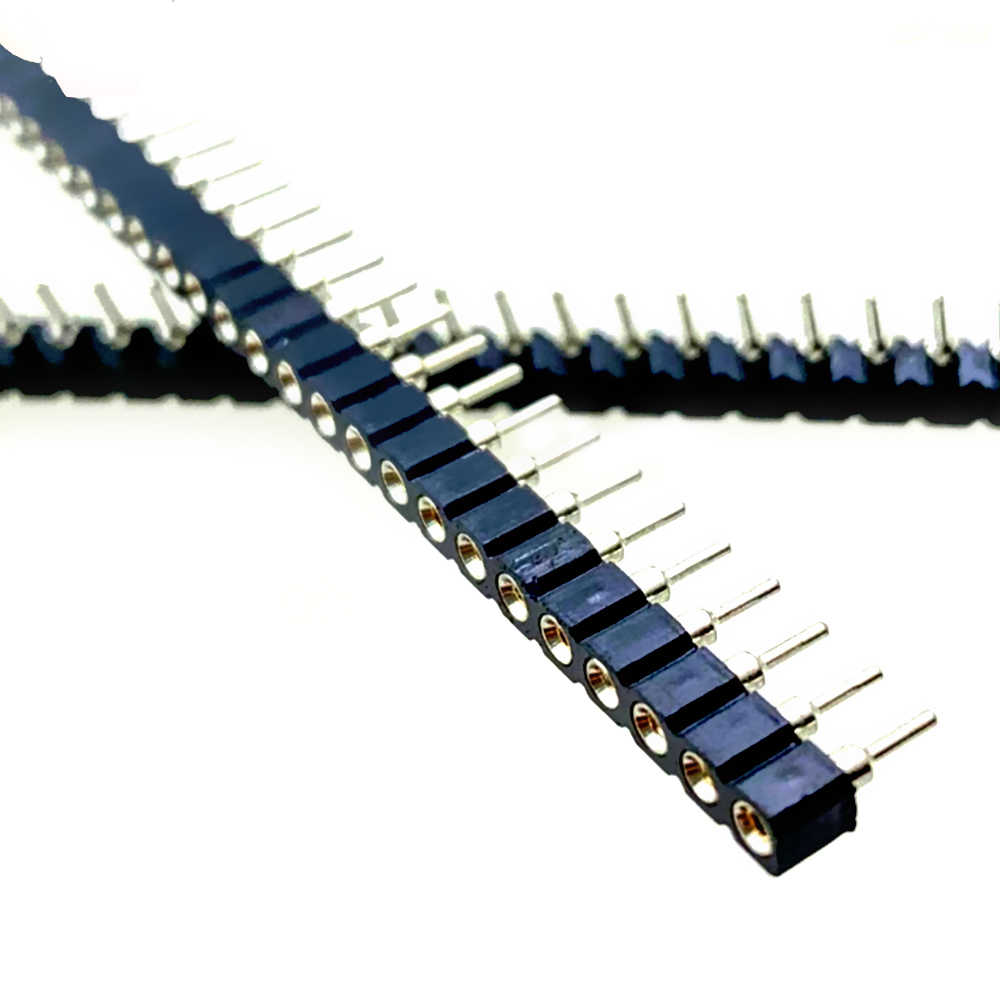

The Single Row Round Female Pin Header is a 40-pin strip of round female sockets with a 2.54 mm (0.1 in) pitch. Solder it to a PCB or perfboard to make a plug-in socket for IC legs, component leads and round-pin headers, so parts can be removed and reused instead of being soldered in permanently. The strip can be cut to the length you need.

Single Row Round Female Pin Header Specifications

• Number of pins: 40
• Rows: 1 (single row)
• Pitch: 2.54 mm (0.1 in)
• Contact type: round female sockets
• Mounting: through-hole soldering
• Pack size: 1 strip

Single Row Round Female Pin Header Applications

• Low-profile sockets for DIP ICs on prototype boards
• Plug-in sockets for resistors, LEDs and crystals, for quick value changes
• Removable connections for modules with round male pins
• Custom shields and add-on boards
• Repairs and replacement headers

What's in the Box

• 1 × 40-pin single row round female pin header, 2.54 mm

Tip: To shorten the strip, cut through the pin just after the last one you need with flush cutters and file the end smooth; cutting a female header usually costs one pin. Round sockets grip round pins and IC legs best, so for modules with standard square header pins a standard female header may be a better fit.
