4XAA + Mini SWITCH

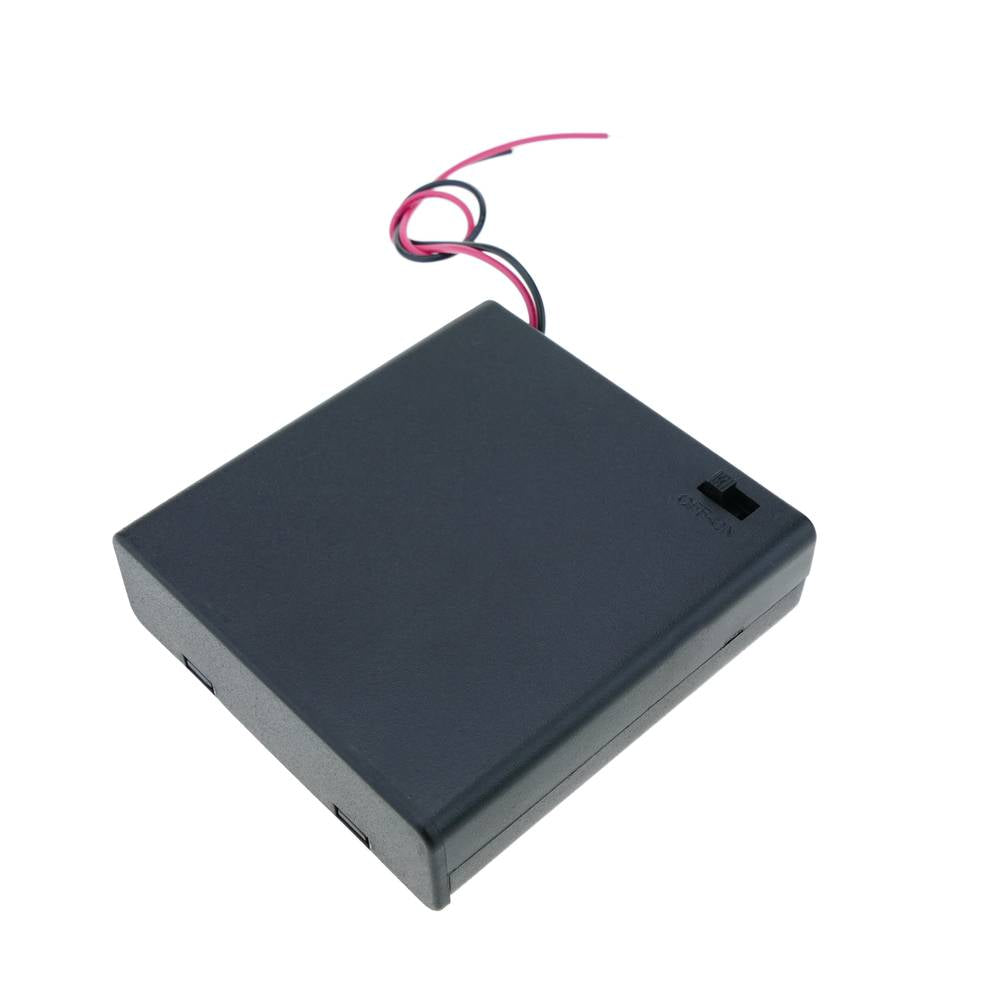

The 4XAA + Mini SWITCH is a battery holder for four AA cells with a mini on/off switch. The cells are connected in series to give about 6 V with alkaline batteries, a handy portable supply for small robots, motor projects, toys and school experiments, and the switch lets you cut the power without removing the batteries.

4XAA + Mini SWITCH Specifications

• Battery size: AA
• Capacity: 4 cells
• Connection: cells in series
• Output voltage: about 6 V with alkaline cells (4 × 1.5 V), about 4.8 V with NiMH rechargeable cells (4 × 1.2 V)
• Switch: mini on/off switch

4XAA + Mini SWITCH Applications

• Powering small DC gear motor robots and cars
• Running servo motors and 6 V motor projects
• Portable power for LED and buzzer circuits
• School science and STEM projects
• Replacing worn battery holders in toys and gadgets

What's in the Box

• 1 × 4 × AA battery holder with mini switch

Tip: Check the output polarity with a multimeter before connecting your circuit. 6 V is too high for the 5V pin of an Arduino and a little low for the Uno's VIN input (7–12 V recommended), so use a suitable regulator for the board or power motors and servos directly.
