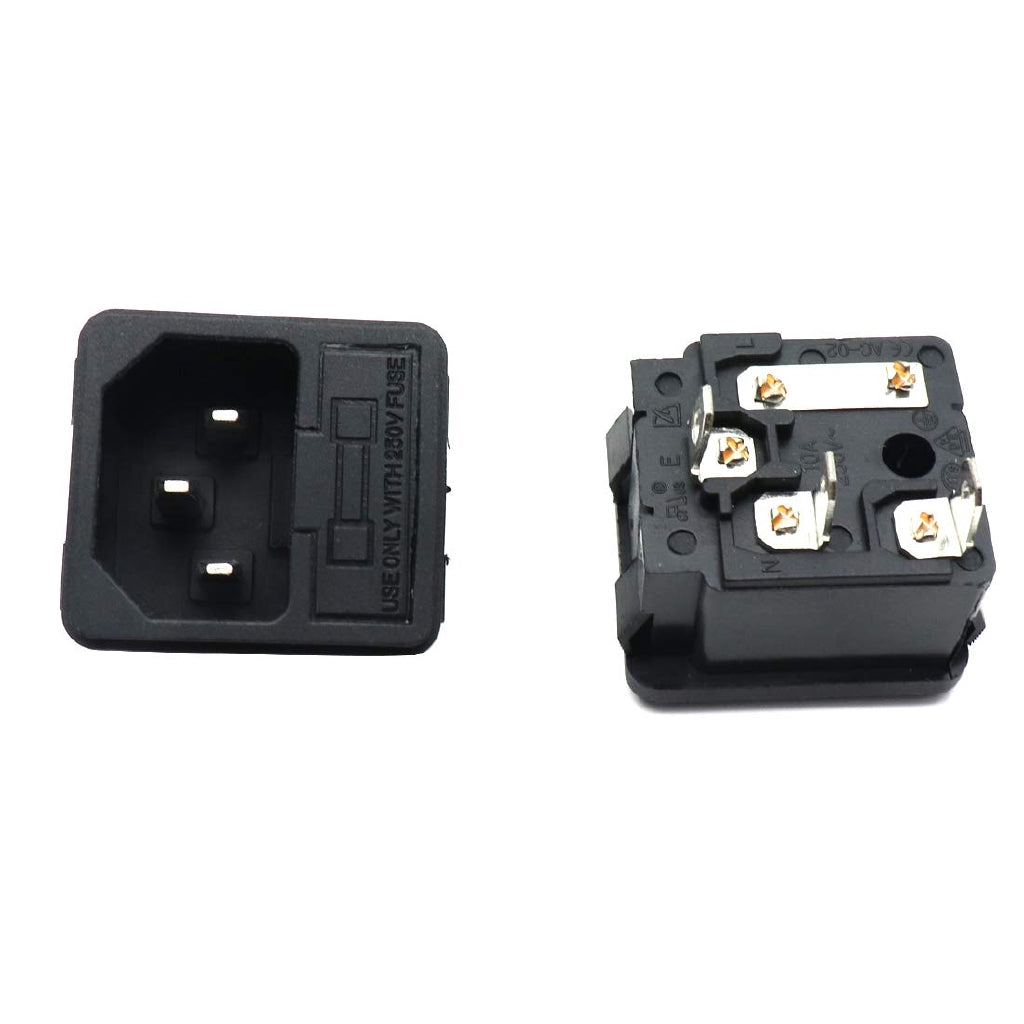

AC Socket 2-in-1 Fuse, Solderable

The AC Socket 2-in-1 Fuse is a panel-mount AC power inlet with a built-in fuse holder, combining two functions in one part. It gives DIY power supplies, amplifiers and other mains-powered enclosures a neat, detachable power cord connection with fuse protection on the input. The terminals are solder tabs, so the mains wires are soldered directly to the back of the socket.

AC Socket 2-in-1 Fuse Specifications

• Type: 2-in-1 AC power inlet with fuse holder
• Inlet: 3-pin IEC C14 style inlet (live, neutral, earth) for a standard C13 power cord, as used on PCs and monitors
• Fuse: built-in fuse holder on the input
• Terminals: solder tabs
• Mounting: panel mount in an enclosure cut-out

AC Socket 2-in-1 Fuse Applications

• DIY bench power supplies and battery chargers
• Amplifier and audio equipment enclosures
• 3D printer and CNC control boxes
• Test equipment and lab projects
• Replacing a damaged power inlet on existing equipment

What's in the Box

• 1 × AC socket 2-in-1 with fuse holder, solder terminals

Tip: Choose a fuse rated just above your device's normal current and check that its size fits the holder. Cover the soldered tabs with heat-shrink sleeving, connect the earth pin to any metal enclosure, and only wire the socket with the mains cord unplugged.
