AC Socket3-in-1 with Fuse Box & Switch Socket (Fuse and switch not included)

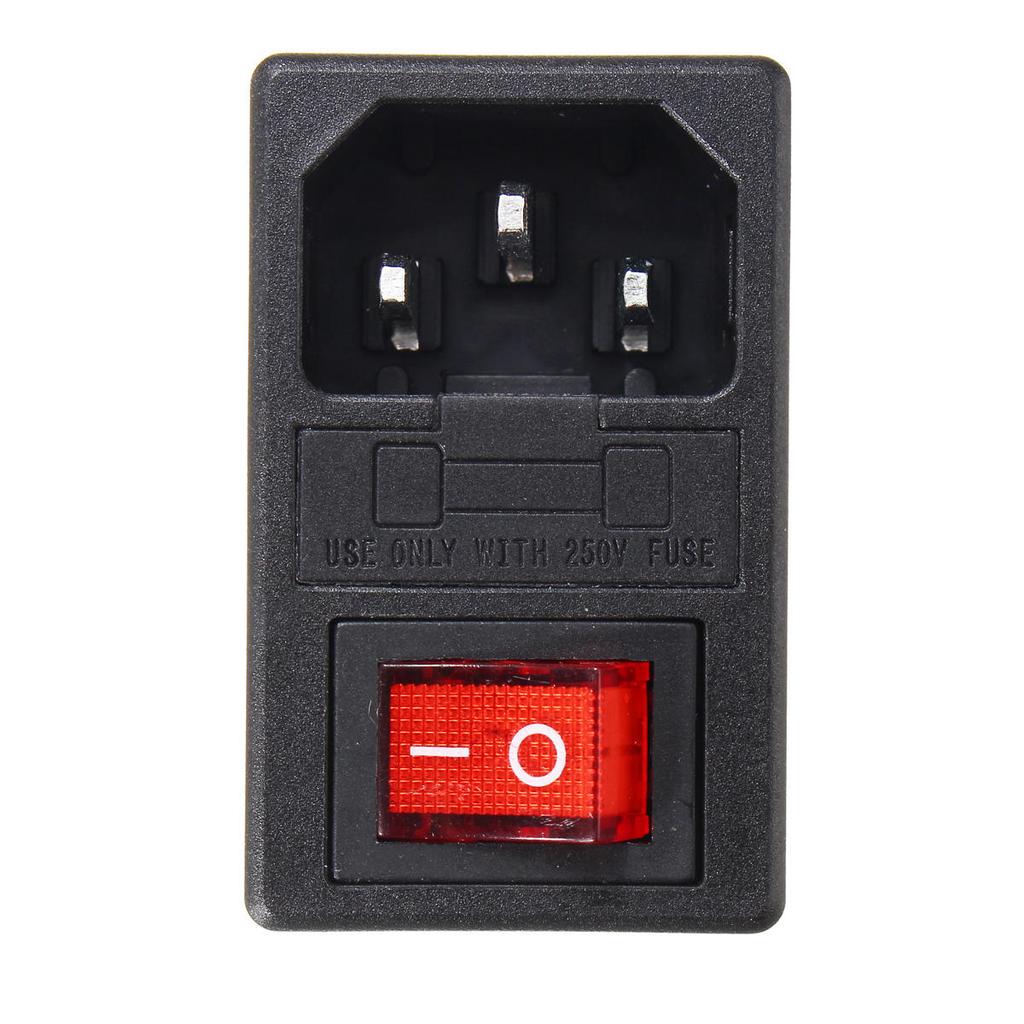

The AC Socket3-in-1 with Fuse Box is a panel-mount AC power entry socket that combines three functions in one part: a 3-pin power inlet, a fuse box and a socket for a power switch. It gives DIY power supplies, amplifiers and other mains-powered enclosures a neat, protected power input. Please note that the fuse and the switch are not included.

AC Socket3-in-1 with Fuse Box Specifications

• Type: 3-in-1 AC power entry socket
• Inlet: 3-pin IEC C14 inlet (live, neutral, earth) for a standard C13 power cord, as used on PCs and monitors
• Fuse: built-in fuse box (fuse not included)
• Switch: switch socket (switch not included)
• Mounting: panel mount in an enclosure cut-out

AC Socket3-in-1 with Fuse Box Applications

• DIY bench power supplies and chargers
• Amplifier and audio equipment enclosures
• 3D printer and CNC control boxes
• Test equipment and lab projects
• Replacing a damaged power inlet

What's in the Box

• 1 × AC socket 3-in-1 with fuse box and switch socket (fuse and switch not included)

Tip: Choose a fuse rated just above your device's normal current and check that its size fits the fuse box. Always connect the earth pin to a metal enclosure, and only wire the socket with the mains cord unplugged.
