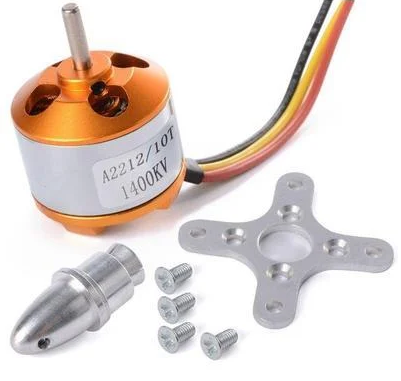

Brushless Motor A2212 1400kV

The Brushless Motor A2212 1400kV is a popular outrunner brushless DC motor for multirotor drones, RC planes and other hobby projects that need high-speed propulsion. The 1400 kV rating means it spins at about 1400 rpm for every volt applied with no load, so on a 3S 11.1 V LiPo battery it reaches roughly 15,500 rpm. It is driven by a brushless ESC (electronic speed controller) through its three phase wires.

Brushless Motor A2212 1400kV Specifications

• Model: A2212
• KV rating: 1400 rpm per volt (no load)
• Type: brushless outrunner (the outer can rotates)
• Size class: 2212 – 22 mm stator diameter, 12 mm stator height
• Battery: 2S to 3S LiPo (7.4 V to 11.1 V)
• Wiring: 3 phase wires to a brushless ESC

Brushless Motor A2212 1400kV Applications

• Quadcopter, hexacopter and other multirotor drones
• RC planes, gliders and park flyers
• Air boats and hovercraft models
• School and university drone projects with a flight controller or Arduino
• Propeller thrust test rigs

What's in the Box

• 1 × A2212 1400 kV brushless motor

Tip: Use a brushless ESC rated above the motor's maximum current with your chosen propeller, and match the propeller size to the 1400 kV rating, because a propeller that is too large will overload the motor and ESC. To reverse the direction, swap any two of the three motor wires, and always remove the propeller when testing on the bench.
