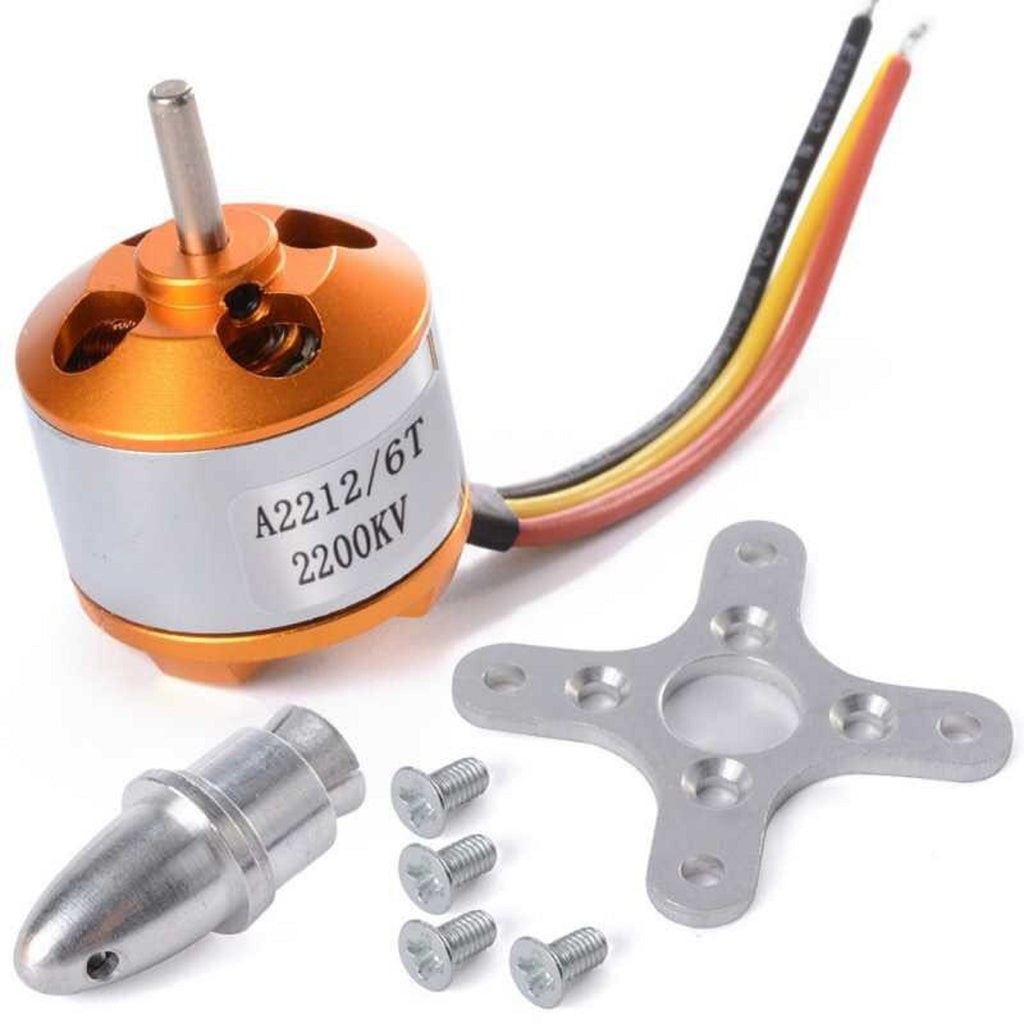

Brushless Motor A2212 2200kV

The Brushless Motor A2212 2200kV is an outrunner brushless DC motor widely used in quadcopters, RC planes and other small electric aircraft. The 2200 kV rating means it spins at about 2200 rpm for every volt applied with no load, giving high speed for small propellers. It is driven by an electronic speed controller (ESC) from a LiPo battery and is a common motor in drone and robotics student projects.

Brushless Motor A2212 2200kV Specifications

• Motor type: brushless outrunner (the outer case rotates)
• Size class: 2212
• kV rating: 2200 rpm per volt (no load)
• Battery: 2S to 3S LiPo (7.4 V to 11.1 V)
• Shaft diameter: 3.17 mm
• Wires: 3 phase wires to the ESC
• Typical propeller: about 6 inch, such as 6030

Brushless Motor A2212 2200kV Applications

• Quadcopter and multirotor drones
• RC airplanes and gliders
• Hovercraft and propeller-driven robots
• University and school drone projects
• Thrust tests in engineering labs

What's in the Box

• 1 × A2212 2200 kV brushless motor

Tip: Connect the three motor wires to an ESC rated for the current your setup draws (30 A ESCs are a common pairing) and swap any two wires to reverse the direction. Always remove the propeller while testing on the bench, and do not fit a larger propeller than recommended, as it can overload the motor and ESC.
