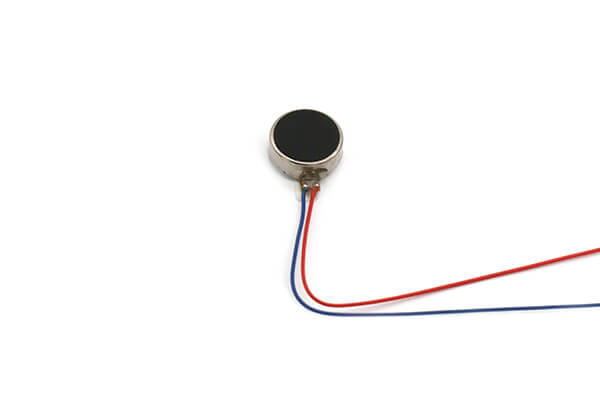

Coin Vibration Motor - 3V

The Coin Vibration Motor is a flat, disc-shaped DC motor rated at 3 V that vibrates when it is powered. Inside the sealed coin-shaped case, a small off-centre weight spins and shakes the motor, the same way a mobile phone vibrates. Its thin, flat shape fits inside wearables, handheld controllers and small enclosures where a normal motor would not fit.

Coin Vibration Motor Specifications

• Type: coin (disc) vibration motor with an eccentric rotating mass
• Rated voltage: 3 V DC
• Shape: flat, round, sealed case with no exposed moving parts
• Connection: 2 terminals, positive and negative
• Mounting: the flat back is fixed to the surface that should vibrate

Coin Vibration Motor Applications

• Haptic feedback for buttons, touch screens and game controllers
• Silent alerts in wearables, watches and pagers
• Notification buzzers in Arduino and ESP32 projects
• Obstacle-warning aids, such as smart canes for visually impaired users
• Small vibrating robots and toys

What's in the Box

• 1 × 3 V coin vibration motor

Tip: Drive the motor from a microcontroller through an NPN transistor such as the 2N2222 or BC547, with a 1N4148 or 1N4007 diode across the motor, because its start-up current is more than a GPIO pin should supply. Keep the supply close to the 3 V rating; you can use PWM on the transistor to adjust the vibration strength.
