DC Motor 12GA Exposed Gear 6V 30rpm

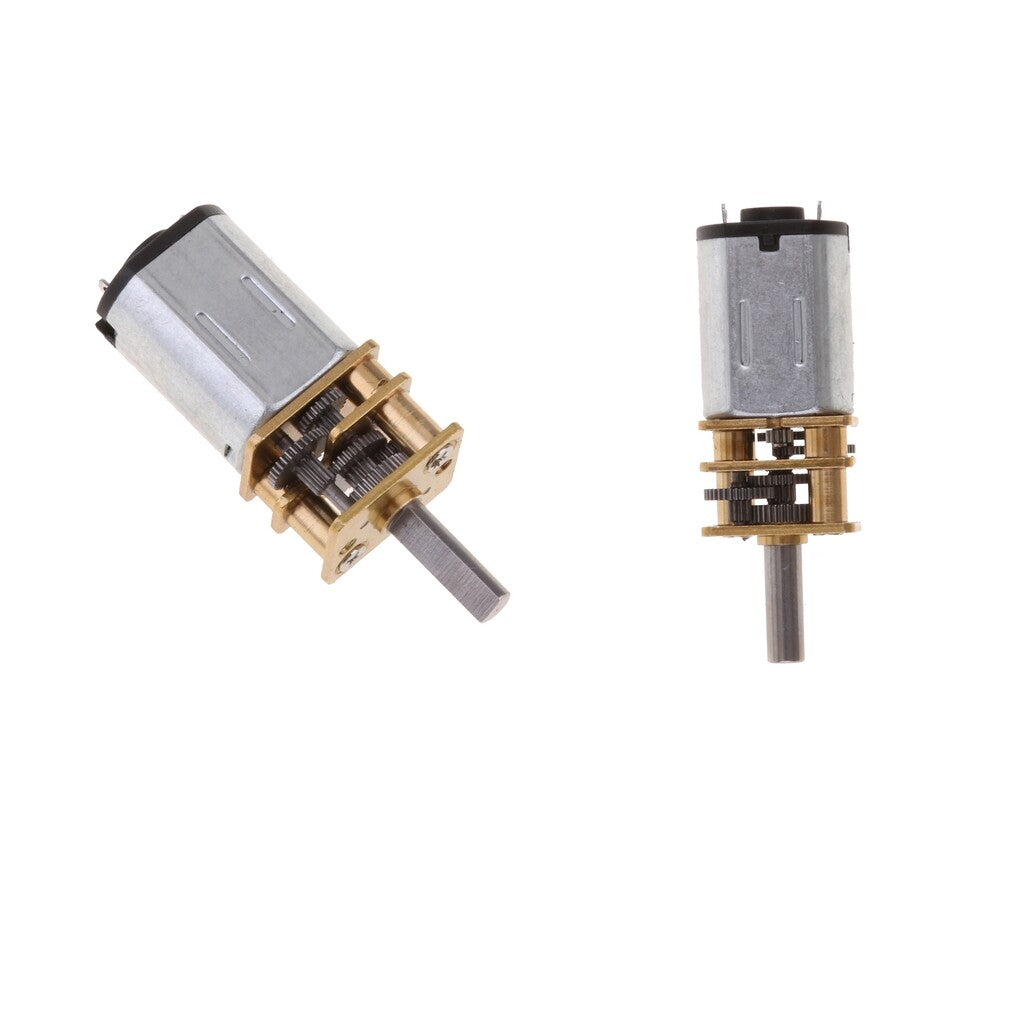

The DC Motor 12GA Exposed Gear is a small 12GA DC gear motor with exposed reduction gears instead of a closed gearbox. This version is rated for 6 V and turns its output shaft at 30 rpm, one full turn every 2 seconds, giving slow, strong rotation for feeders, turntables and other mechanisms that must move gently.

DC Motor 12GA Exposed Gear Specifications

• Model: 12GA
• Gearbox: exposed (open) gears
• Type: DC gear motor (motor with reduction gearbox)
• Rated voltage: 6 V DC
• Output speed: 30 rpm at 6 V (1 turn every 2 seconds)
• Direction: reversible by swapping the supply polarity
• Speed control: PWM through a motor driver

DC Motor 12GA Exposed Gear Applications

• Pet feeders and dispensers
• Slow turntables and rotating signs
• Winding and lifting mechanisms in models
• Kinetic art and moving displays

What's in the Box

• 1 × DC Motor 12GA Exposed Gear 6V 30rpm

Tip: A slow geared motor can push hard if it jams, and open gears can strip when something gets caught in them, so fit end-stop switches and keep the gear train covered. Drive it through a motor driver such as the L9110S with a separate 6 V supply.
