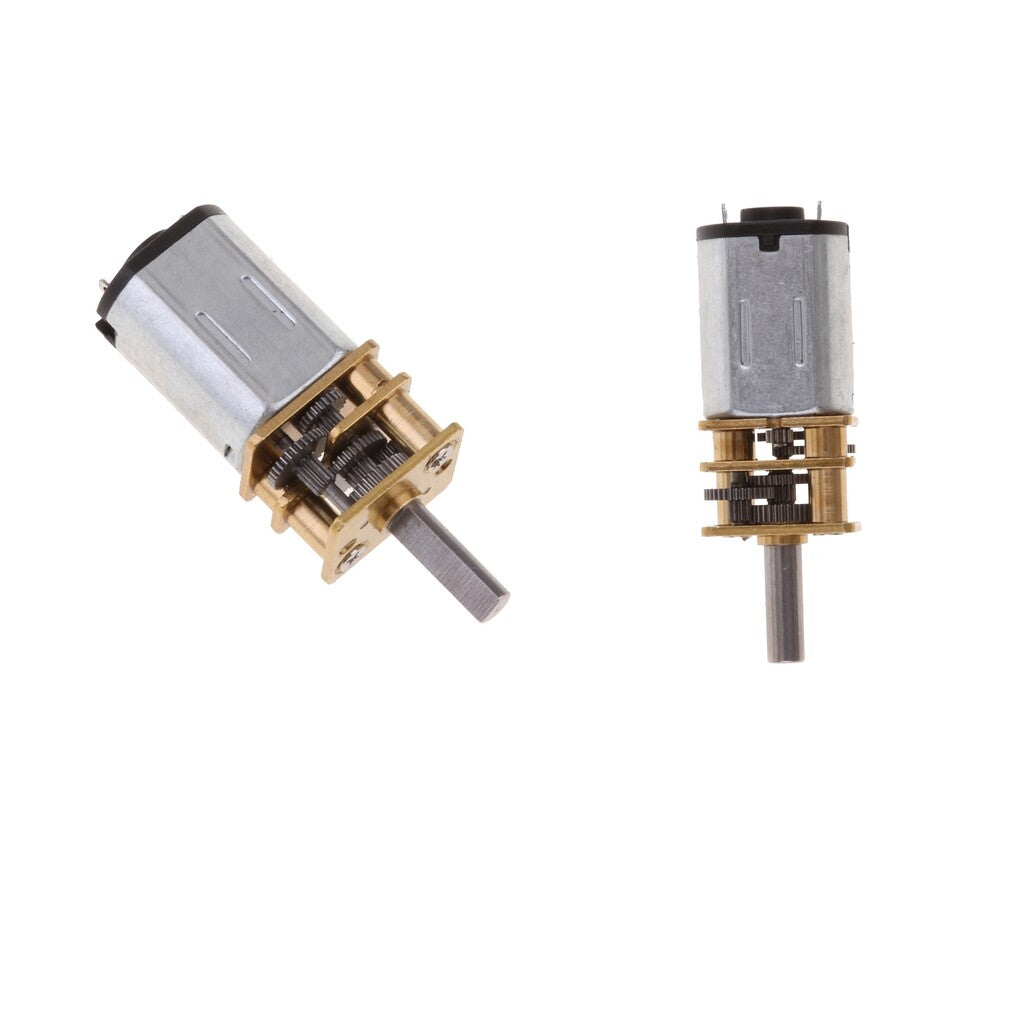

DC Motor 12GA Exposed Gear 6V 450rpm

The DC Motor 12GA Exposed Gear is a compact DC gear motor in the 12GA size with an open gear train, so the gears are visible instead of enclosed in a housing. This version is rated for 6 V and gives a fast 450 rpm at the output shaft, about 7.5 turns per second, for light builds that need speed more than pulling force.

DC Motor 12GA Exposed Gear Specifications

• Model: 12GA
• Gearbox: exposed (open) gears
• Type: DC gear motor (motor with reduction gearbox)
• Rated voltage: 6 V DC
• Output speed: 450 rpm at 6 V
• Direction: reversible by swapping the supply polarity
• Speed control: PWM through a motor driver

DC Motor 12GA Exposed Gear Applications

• Fast mini robot cars
• Small fans and spinners
• Roller and conveyor models
• Showing how gear trains work in class

What's in the Box

• 1 × DC Motor 12GA Exposed Gear 6V 450rpm

Tip: Keep the open gears away from hair, dust and loose wires, as a jam can strip the teeth. With a 40 mm wheel, 450 rpm gives roughly 0.9 m per second before load; use a DRV8833 or TB6612FNG driver for PWM speed control.
