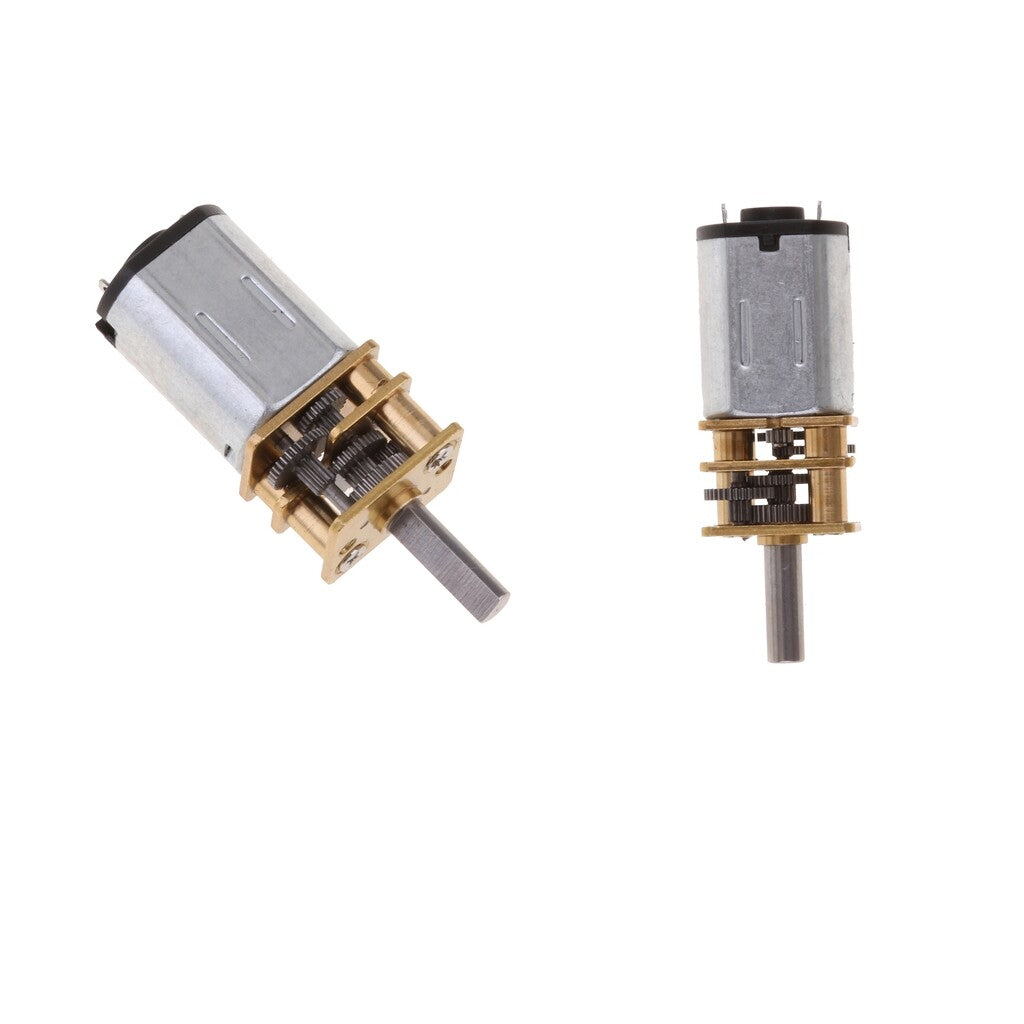

DC Motor 12GA Exposed Gear 6V 60rpm

The DC Motor 12GA Exposed Gear is a compact DC gear motor in the 12GA size with an open gear train that lets you see how the speed reduction works. This version is rated for 6 V with an output speed of 60 rpm, one turn per second, giving slow, steady motion with more torque for small actuators, robot arms and rotating displays.

DC Motor 12GA Exposed Gear Specifications

• Model: 12GA
• Gearbox: exposed (open) gears
• Type: DC gear motor (motor with reduction gearbox)
• Rated voltage: 6 V DC
• Output speed: 60 rpm at 6 V (1 turn per second)
• Direction: reversible by swapping the supply polarity
• Speed control: PWM through a motor driver

DC Motor 12GA Exposed Gear Applications

• Robot arms and grippers
• Rotating displays and turntables
• Small actuators such as latches and flaps
• Gear and mechanism demonstrations in class

What's in the Box

• 1 × DC Motor 12GA Exposed Gear 6V 60rpm

Tip: Since the gears are open, mount the motor inside a cover or well away from hair, fabric and loose wires. One turn per second makes timed moves simple; add a limit switch for exact stops and use a TB6612FNG or L9110S driver for control.
